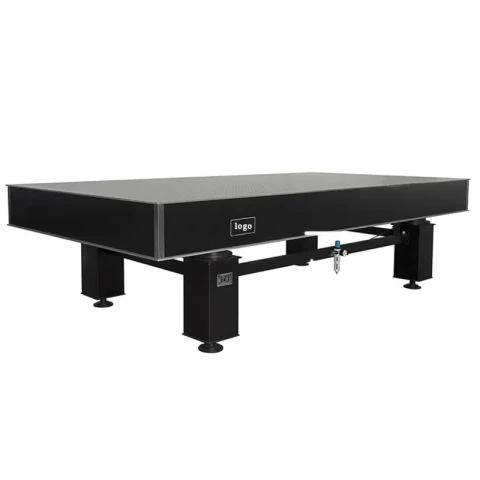

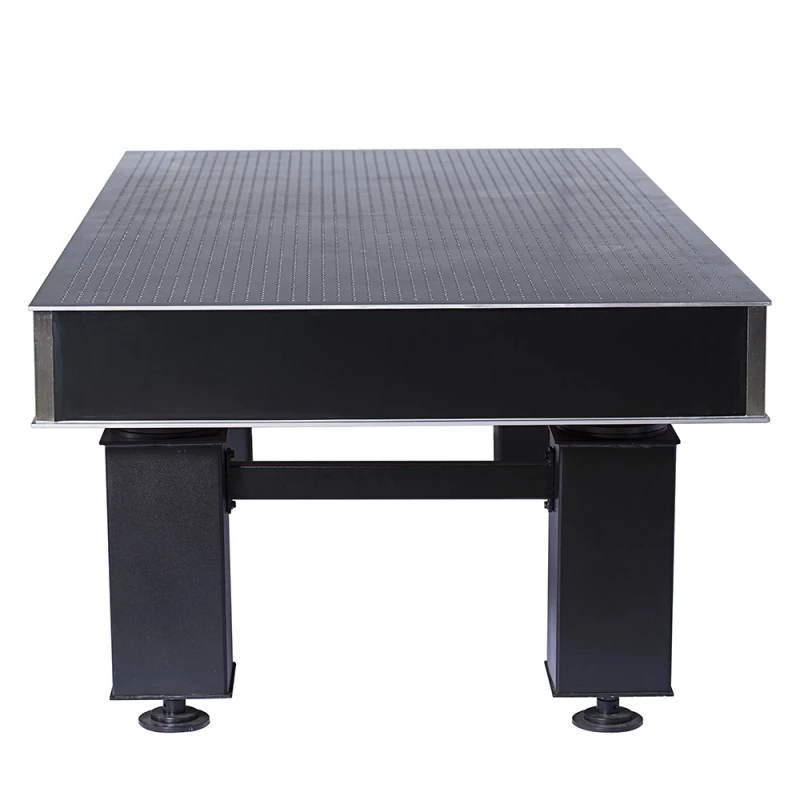

ZDT-Pseries Tuned Damped Upgradable Optical Table with Pneumatic Isolation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Description
The ZDT-P Series Optical Table is a high-precision, customizable solution designed to meet the demanding needs of advanced optical research and experiments. Originating from Jiangxi, China, this table boasts a robust design and features that ensure stability, accuracy, and durability.
Key Specifications:
Inherent Frequency: 1.0-2.0Hz (both vertically and horizontally), providing excellent vibration isolation for sensitive optical instruments.

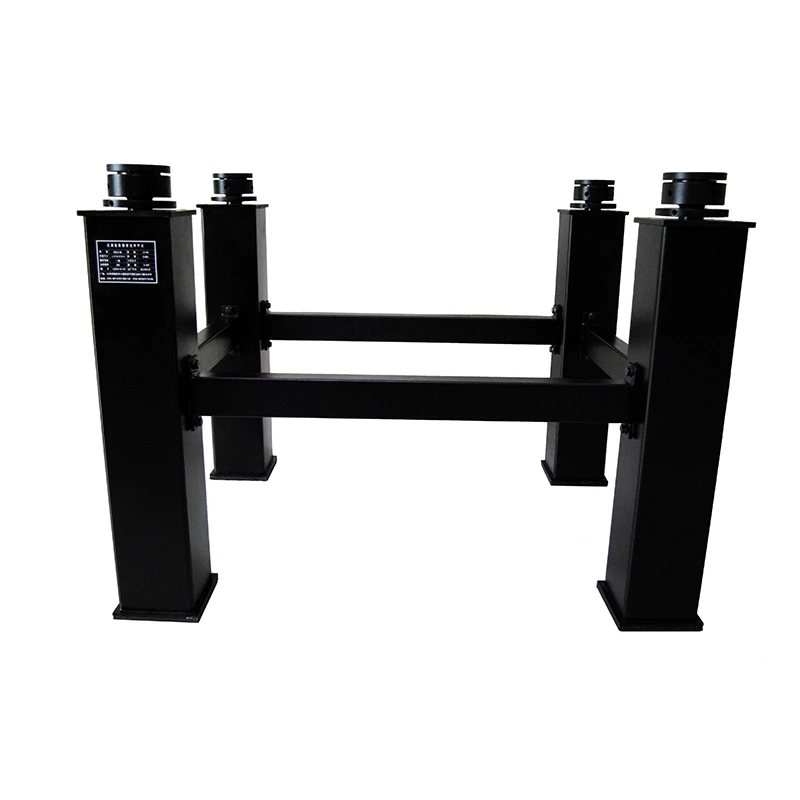

Vibration Isolation Structure: Equipped with an ultra-thin air spring, the table minimizes vibrations, ensuring a stable working environment.
Leveling Type: Automatic leveling with high precision.
Total Table Height: 800mm, offering an ergonomic working height for various applications.
Working Air Pressure: Operates efficiently at 0.2-0.4MPa.
Compressed Air Source: Silent compressor with a noise level of less than 50dB, ensuring a quiet laboratory environment.
Re-leveling Accuracy: ±0.1mm, guaranteeing consistent and accurate leveling.
Table Top Flatness: ≤0.05mm/m², providing a perfectly flat surface for precise measurements and experiments.
Surface Roughness: ≤0.8μm, with a matt surface finish to reduce glare and improve measurement accuracy.
Isolator Height Adjustment Range: ±10mm, allowing fine-tuning for optimal alignment and stability.
The ZDT-P-008006 Optical Table is built to deliver exceptional performance with customizable options to fit specific requirements. Its advanced features and reliable construction make it an ideal choice for laboratories and research facilities aiming for the highest levels of precision and stability in their optical applications.
ZDT-Pseries Tuned Damped Upgradable Optical Table with Pneumatic Isolation
Specifications |
|
|---|---|
| Table Material: | Custom |
| Hole Pattern: | M6 holes separated by 25mm |
| Table Length: | 900 mm |
| Table Width: | 600 mm |
| Table Thickness: | 6 mm |
| Flatness: | +/- 0.05 mm/mm^2 |
| Model: | LSSP-X-13VZ-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Center |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VZ-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.12kg |
| Model: | LSSP-X-13VZ-03 |
| Platform Size: | 60x60mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 3kg |
| Driving Position: | Center |
| Net Weight: | 0.17kg |
| Model: | LSSP-X-13VC-01 |
| Platform Size: | 34x34mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
| Load Capacity: | 2kg |
| Driving Position: | Side |
| Net Weight: | 0.07kg |
| Model: | LSSP-X-13VC-02 |
| Platform Size: | 40x40mm |
| Travel Range: | 13mm |
| Accuracy: | 0.005mm |
| Sensitivity: | 0.002mm |
| Driving Mode: | Micrometer Screw |
Features
- Place of Origin: Jiangxi, China
- Warranty: 1 year
- Customized Support: OEM
- Brand Name: Customizable
- Model Number: ZDT-P
- Inherent Frequency: 1.0-2.0Hz, vertically; 1.0-2.0Hz, horizontal
- Vibration Isolation Structure: Ultra thin air spring
- Leveling Type: Automatic
- Total Table Height: 800mm
- Working Air Pressure: 0.2-0.4MPa
- Compressed Air Source: Silent compressor (noise level) <50dB
- Re-leveling Accuracy: ±0.1mm
- Table Top Flatness: ≤0.05mm/m²
- Surfaced Roughness: ≤0.8μm, matt surface finish
- Isolator Height Adjustment Range: ±10mm
Applications
- Laser and Optics Experiments: Provides a stable, vibration-free platform for high-precision laser alignment and optical experiments.
- Microscopy: Ensures a flat and stable surface for various types of microscopy, including electron and fluorescence microscopy.
- Interferometry: Ideal for interferometric measurements, where minute vibrations can affect the accuracy of the results.
- Spectroscopy: Supports sensitive spectroscopic equipment, ensuring accurate data collection without interference from external vibrations.
- Optical Metrology: Suitable for high-precision measurements and calibration of optical components.
- Photonics Research: Provides a reliable foundation for experiments and developments in photonics, including fiber optics and lightwave technologies.
- Quantum Mechanics Experiments: Ensures the stability required for delicate quantum experiments that are sensitive to environmental disturbances.
- Precision Engineering: Useful in precision engineering tasks that require a highly stable and flat working surface.
- Educational Laboratories: Beneficial for universities and research institutions for conducting advanced optical and physics experiments.
- Industrial Quality Control: Supports high-precision inspection and quality control processes in the manufacturing of optical and photonic components.
Frequently Asked Questions
The travel range for all models of the Linear Translation Stages is 13mm.
The accuracy of the Linear Translation Stages is 0.005mm.
The load capacity for the LSSP-X-13VZ-01 model is 2kg.
The driving mode for these Linear Translation Stages is a Micrometer Screw.
The platform sizes available are 34x34mm, 40x40mm, and 60x60mm.
The primary difference is the driving position; the LSSP-X-13VZ series has a center driving position, while the LSSP-X-13VC series has a side driving position.
