Custom High Precision Penta Prism 0.2 Seconds
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Changchun Sunday Optics Co., ltd -
On FindLight:
since 2024
Description
Changchun Sunday Optics Co., Ltd is a renowned manufacturer and supplier of high-quality optical components, located in the heart of Changchun, China. With a commitment to precision and excellence, we specialize in producing a wide range of optical products that cater to various industries and applications. Our state-of-the-art facilities and skilled workforce ensure that each product meets the highest standards of quality and performance.
Our optical components are crafted from a variety of premium materials, including BK7, UV Fused Silica, Sapphire, ZnSe, CaF2, Si, and Ge, among others. We offer an extensive range of sizes from 3mm to 380mm, with size tolerances as precise as +/-0.02mm or customized according to client specifications. Each component is designed to provide a clear aperture of over 90%, ensuring maximum efficiency and clarity in optical applications.
At Changchun Sunday Optics, we prioritize precision in every aspect of our manufacturing process. Our products boast superior surface quality, with scratch/dig specifications ranging from 60-40 to 10/5, and exceptional flatness of 1/10 lambda at 632.80nm. The components are meticulously chamfered at 0.25mm x 45° and adhere to stringent angle tolerances, ensuring optimal performance in demanding environments.
We offer a variety of coating options, including AR, HR, Aluminum, and Silver, or custom coatings tailored to specific customer requirements. Our dedication to customization and quality assurance makes us a trusted partner for clients seeking reliable optical solutions. For inquiries and further information, please contact us at sales@sunday-optics.com or via phone at 86-15104452660. Our team is ready to assist you with your optical needs.

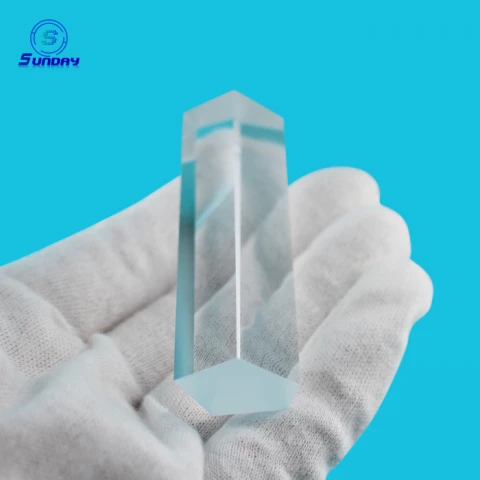

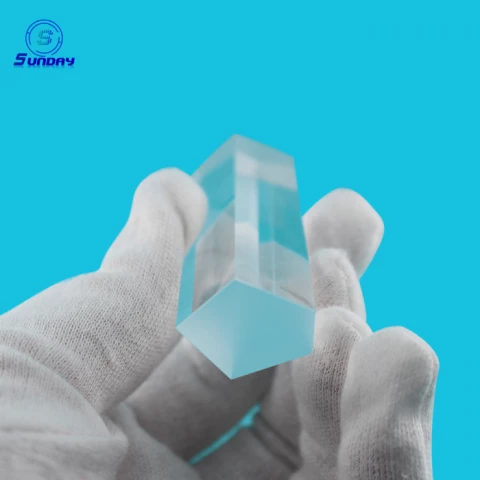

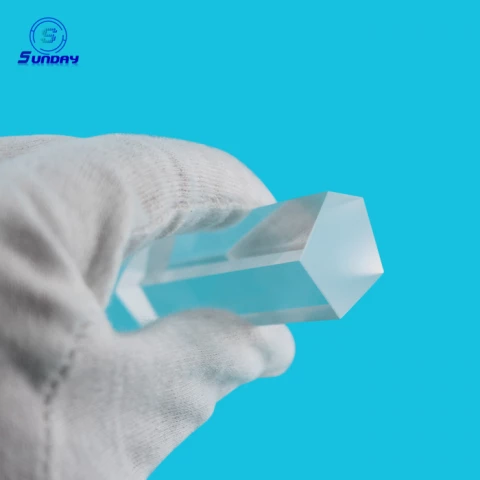

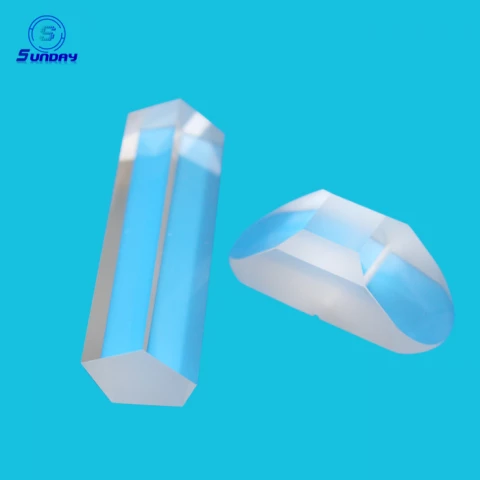

Custom High Precision Penta Prism 0.2 Seconds
Specifications |
|
|---|---|
| Material: | BK7 |
| Dimension (A): | 200 mm |
| Dimension (B): | 4 mm |
| Mounting: | Unmounted |
Features
- Material Options: BK7, UV Fused Silica, Sapphire, ZnSe, CaF2, Si, Ge, and more.
- Size Range: 3mm to 380mm, accommodating various application needs.
- Size Tolerance: +/- 0.02mm or as per customer request for precision.
- Clear Aperture: Greater than 90%, ensuring high-quality optical performance.
- Surface Quality: Options include 60-40, 40-20, 20/10, 10/5 for different clarity levels.
- Flatness: 1/10 lambda at 632.80nm, providing excellent optical accuracy.
- Chamfer: 0.25mm x 45°, enhancing durability and safety.
- Angle Tolerance: Options include <2'', <3'', <30'', <1', <3', ensuring precise alignment.
- Coating Options: AR, HR, Aluminum, Silver, or customized as per customer requirements.
Applications
- Laser Systems: Provides protective, distortion-free windows for high-power laser setups.
- Imaging & Sensing Devices: Ensures clarity and accuracy in optical instruments.
- Spectroscopy: Maintains high transmission and flatness for analytical systems.
- Industrial Optics: Used in protective housings for harsh environments.
- Defense & Aerospace: Reliable in demanding precision and environmental conditions.
Frequently Asked Questions
The available materials include BK7, UV Fused Silica, Sapphire, ZnSe, CaF2, Si, Ge, and others.
The optics are available in sizes ranging from 3mm to 380mm.
The size tolerance is +/- 0.02mm or can be customized according to customer requests.
The clear aperture is greater than 90%.
The surface quality specifications are 60-40, 40-20, 20/10, 10/5.
The flatness is specified as 1/10 lambda at 632.80 nm.
Available coatings include AR, HR, Aluminum, Silver, or can be customized according to customer requests.
