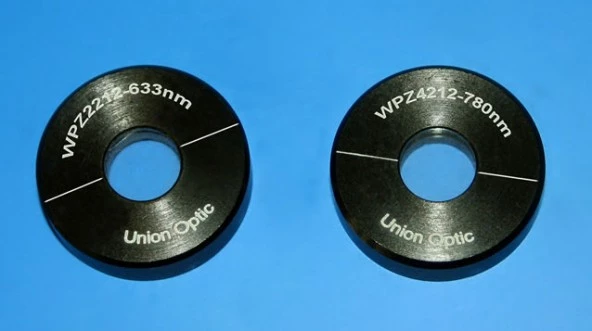

Cemented Zero Order Waveplate

Description

Cemented zero order waveplate is constructed by two quartz plates with their fast axis crossed, the two plates are cemented by UV epoxy. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates.

Better Temperature Bandwidth
Wide Wavelength Bandwidth
Both Sides AR Coated
RoHS Compliant

Specifications

Waveplate Type (Retardation Order):	Zero Order
Material:	Quartz
Mounting:	Mounted, Unmounted
Shape:	Round, Square, Rectangle, Custom
Size (Largest Dimension):	25.4 mm
Design Wavelength:	1064 nm
Surface Quality (Scratch-Dig):	20-10
Retardation:	Lambda/2, Lambda/4, Lambda, Other
Retardation Tolerance:	+/- Lambda/300, Custom
Transmitted Wavefront Distortion (TWD):	<= Lambda/8
Diameter :	1-150 mm
Wavelength:	405-2020 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Material Crystal Quartz
Dimension Tolerance +0.0/-0.2mm
Wavefront Distortion λ/8@632.8nm(just for single plate)
Retardation Tolerance λ/300
Parallelism <1 arc second(just for single plate)
Surface Quality 20/10 scratch and dig
Clear Aperture >90% central area
Standard Wave quarter-wave(λ/4), half-wave(λ/2)
AR Coating R<0.25%@central wavelength
Damage Threshold >500mJ/cm2, 20ns, 20Hz @1064nm

Request Quote

To: Union Optic
Re: Cemented Zero Order Waveplate

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Union Optic
On FindLight:: since 2016

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the features of this waveplate?

The waveplate is made of crystal quartz and has a dimension tolerance of +0.0/-0.2mm. It has a wavefront distortion of λ/8@632.8nm (just for single plate) and a retardation tolerance of λ/300. The parallelism is <1 arc second (just for single plate) and the surface quality is 20/10 scratch and dig. It has a clear aperture of >90% central area and comes with both sides AR coated. It is also RoHS compliant.

What is a cemented zero order waveplate?

A cemented zero order waveplate is constructed by two quartz plates with their fast axis crossed, and the two plates are cemented by UV epoxy. The difference in thickness between the two plates determines the retardance.

What are the advantages of using a zero order waveplate?

Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order waveplates. They also have better temperature bandwidth and wide wavelength bandwidth.

What types of waves can this waveplate produce?

This waveplate can produce quarter-wave (λ/4) and half-wave (λ/2) waves.

What is the damage threshold of this waveplate?

The waveplate has a damage threshold of >500mJ/cm2, 20ns, 20Hz @1064nm.
