Description
CRYSTECH is a leader in the field of precision optical components, specializing in high-quality thin film polarizers designed for solid-state laser systems. With over 20 years of experience, CRYSTECH has established itself as a trusted manufacturer known for its dedication to excellence in design, manufacturing, and coating processes. Our polarizers are crafted using premium materials such as BK7, fused silica, and other high-grade glass, ensuring superior performance and reliability.
Our state-of-the-art facilities in China house some of the most advanced coating machines available, operated by a team of top coating experts. This combination allows us to produce polarizers that not only meet but exceed industry standards. Our polarizers are distinguished by their ability to handle high P-polarized light, maintain a high extinction ratio, and offer exceptional resistance to damage, making them ideal for demanding applications.
At CRYSTECH, we understand the importance of customization and precision. Our polarizers are available in various shapes and sizes and can be tailored to meet specific customer requirements. Whether you need a standard coating or a custom solution, our team is ready to deliver a product that aligns perfectly with your needs. Our commitment to quality and customer satisfaction is evident in every polarizer we produce.

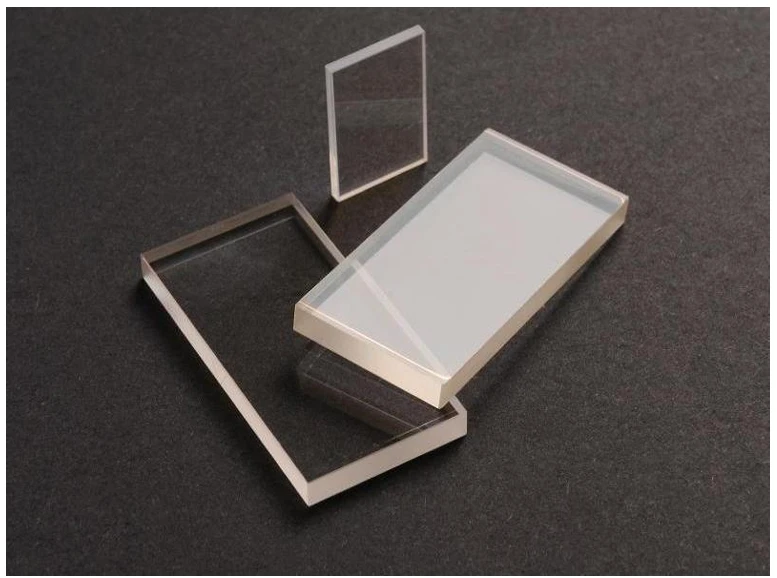

Thin Film Polarizer for Solid-State Lasers
Specifications |
|
|---|---|
| Substrate Material: | N-BK7, Fused Silica, UVFS, Calcium Fluoride, Sapphire, Custom |
| Polarizing Material: | Not Specified |
| Shape: | Custom, Square, Round, Rectangle |
| Size: | 16 mm |
| Wavelength Range: | 532 – 2094 nm |
| Max Extinction Ratio: | Not Specified |
| Surface Flatness: | <= Lambda/4 |
| Surface Quality (Scratch-Dig): | 10-5 |
| Working Wavelength: | 1064nm |
| Size: | φ30X3mm |
| Size: | φ25.4X3mm |
| Size: | φ18X3mm |
| Size: | φ15X3mm |
| Size: | 27X16X2mm |
| Size: | 22X12X3mm |
| Working Wavelength: | 2094nm |
| Working Wavelength: | 1319nm |
| Clear Aperture: | >90% |
| Working Wavelength: | 755nm |
| Working Wavelength: | 694nm |
| Working Wavelength: | 532nm |
| Size: | 16x10x2mm |
| Parallelism: | <1′ |
| Surface Quality: | 10/5 |
| Flatness: | L/4@633nm |
Features
- Wide Material Range: Available in materials suitable for visible to infrared wavelengths, including BK7 and fused silica.
- Customizable Design: Offers customizable shapes and sizes to meet specific application needs.
- High Clear Aperture: Greater than 90% clear aperture for optimal performance.
- Precision Flatness: Flatness of L/4 @ 633nm ensures high-quality optical performance.
- Superior Surface Quality: Surface quality rated at 10/5 for minimal imperfections.
- Excellent Parallelism: Parallelism of less than 1′ for precise beam alignment.

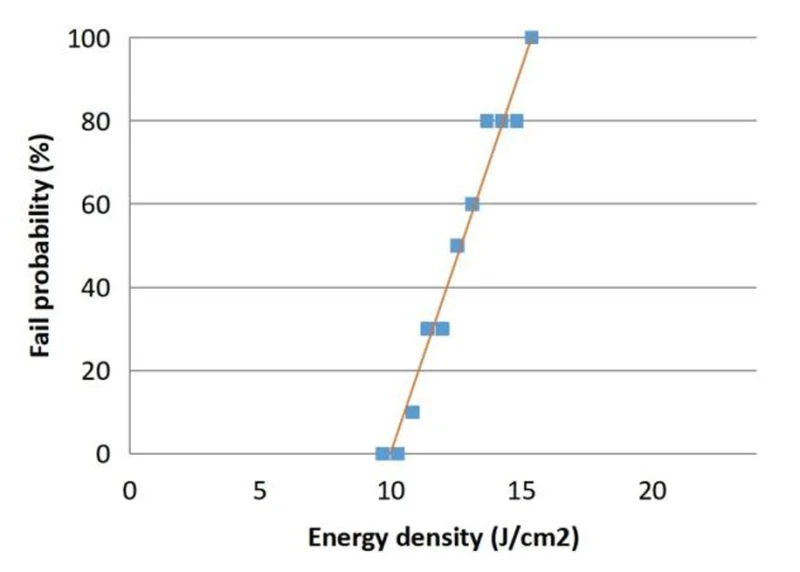

- High Damage Threshold: Capable of withstanding high laser power levels.
- Flexible Coating Options: Standard coating available, with options for customization to suit specific customer requirements.
Description: CRYSTECH specializes in manufacturing high-precision thin film polarizers for solid-state laser systems. With over 20 years of experience, we provide polarizers with high P-polarized light, high extinction ratio, and high resistance to damage, supported by our expert coating team and advanced machinery.
Standard Products:
- Sizes: 16x10x2mm, 22x12x3mm, 27x16x2mm, φ15x3mm, φ18x3mm, φ25.4x3mm, φ30x3mm
- Working Wavelengths: 532nm, 694nm, 755nm, 1064nm, 1319nm, 2094nm
Applications
- Laser optics
- Metrology
- Imaging
- Spectroscopy
Frequently Asked Questions
The LaserOptics polarizer is available in materials suitable for the visible to infrared wavelength range, including BK7, fused silica, and other glass raw materials.
Yes, the shape and size of the polarizer can be customized according to customer needs.
The clear aperture of the polarizer is greater than 90%.
The surface quality of the polarizer is rated at 10/5.
The flatness of the polarizer is specified as L/4 at 633nm.
The parallelism of the polarizer is less than 1 arc minute.
Yes, standard coatings are available, and CRYSTECH can also customize coatings according to customer needs.
