Description
The Beam Expander Series is designed for laser wavelengths of 355 nm, 532 nm, and 1030–1080 nm, providing exceptional image quality in a compact design. It ensures stable and uniform laser output while supporting multiple expansion ratios — 1–4X, 3–6X, 2X, 2.2X, and 3X — to meet diverse application needs.
With a high-precision optical design, the beam expander achieves diffraction-limited performance and eliminates internal focal points, ensuring reliable beam transmission and high-accuracy laser processing.

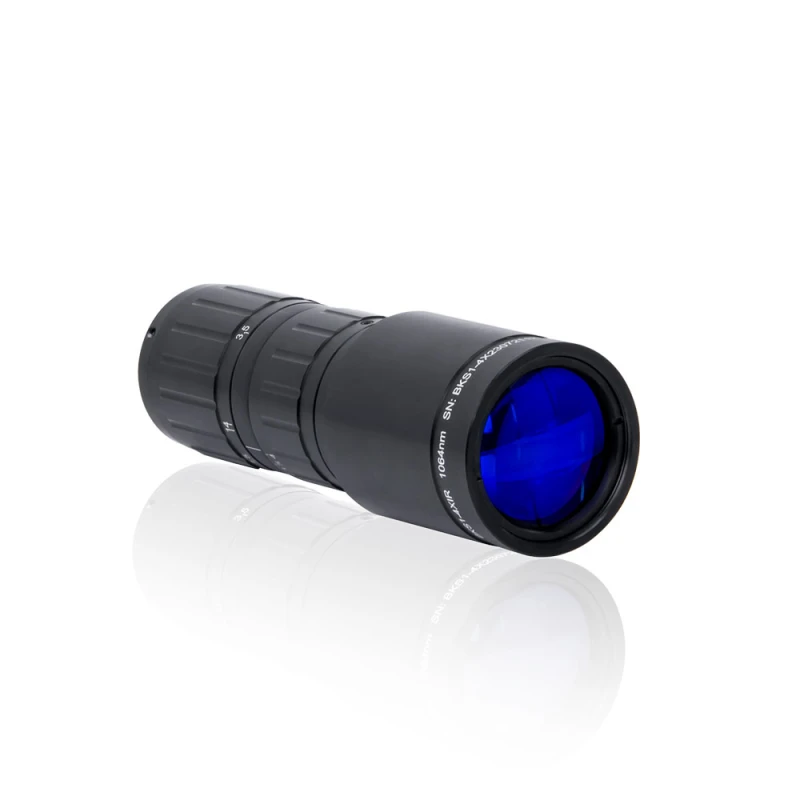

Scanner Optics Beam Expander
Specifications
| Wavelength Range: | 355 – 1064 nm |
|---|---|
| Magnification: | 1–4X, 3–6X, 2X, 2.2X, 3X |
| Clear Input Aperture (mm): | Φ10, Φ14 |
| Max. Input Beam Aperture (mm): | Φ6, Φ8.5, Φ10, Φ12,Φ32 |
| Max. Output Beam Aperture (mm): | Φ32, Φ38 |
| Connection Method: | Clamp/Thread |
Download Data Sheet
Features
- High-Precision Beam Expansion: Ensures a uniform beam profile with minimal distortion, making it ideal for 355 nm (UV), 532 nm (green), and 1030–1080 nm (fiber) laser systems.
- Adjustable or Fixed Magnification Options: Available in Zoom Beam Expander and fixed versions to meet different optical system requirements. Expansion ratios from 1x to 6x.
- Compact and Durable Design: Lightweight, robust, and easy to integrate into laser marking, engraving, or scanning systems.
Applications
It is widely used in laser marking, cutting, drilling, micromachining, welding, 3D printing, and optical testing applications across industrial and research fields.
