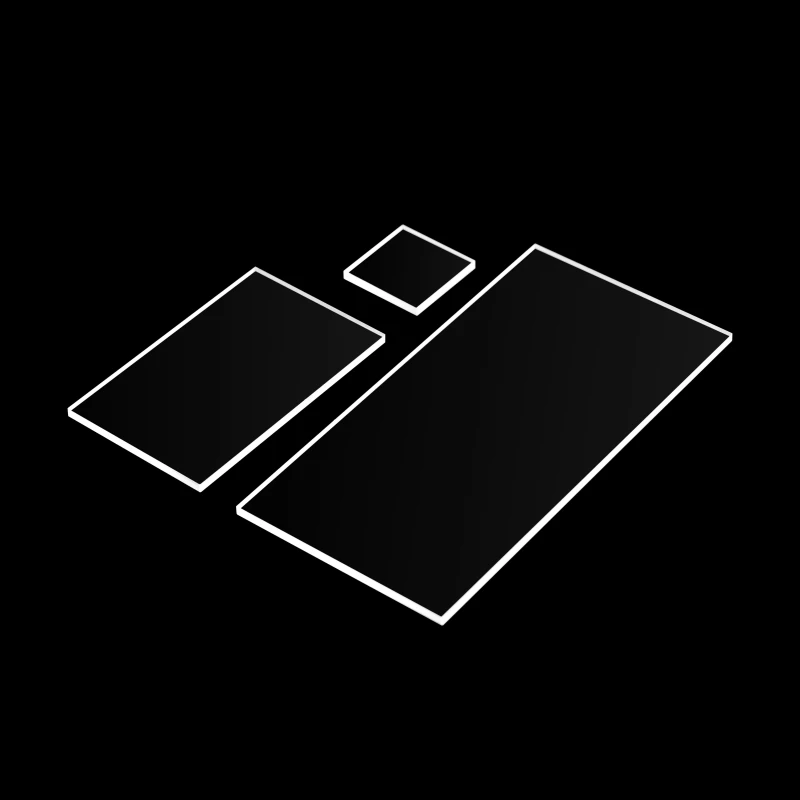

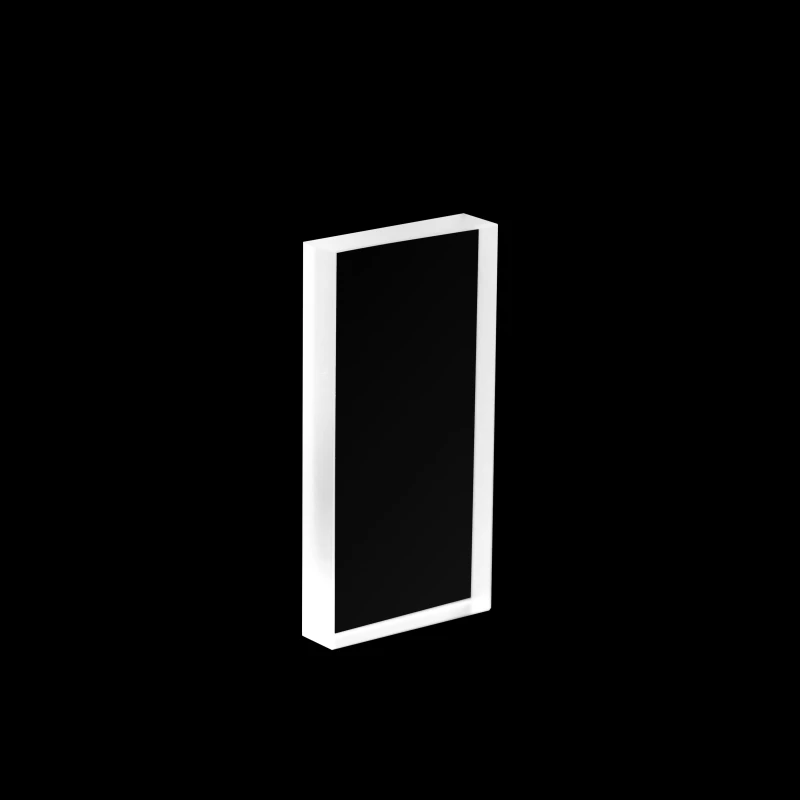

Optical UV Grade Calcium Fluoride Monocrystalline CaF2 Window for Precision Ultraviolet Optical Systems

Name: Optical UV Grade Calcium Fluoride Monocrystalline CaF2 Window for Precision Ultraviolet Optical Systems
Brand: Henan UM Optics Ltd
Availability: InStock

Description

UV grade calcium fluoride (CaF₂) single crystal is a high-purity synthetic optical crystal optimized specifically for deep ultraviolet transmission. Manufactured with strict crystal growth and low-defect control, this material features excellent deep UV transmittance and no solarization under continuous UV exposure. With low intrinsic absorption and high spectral uniformity, UV-grade CaF₂ ensures stable and reliable optical performance for precision ultraviolet optical systems and deep UV analytical instruments.

Specifications

Substrate Material:	CaF2
Antireflection Coating:	Coated, Uncoated
Surface Quality:	40-20 scratch-dig, 60-40 scratch-dig
Surface Flatness:	lambda/2
Size:	custom
Dimension Tolerance:	+0/-0.1mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Excellent Deep UV Transmission: High transmittance down to 130 nm, ideal for deep ultraviolet optical path transmission
Anti-Solarization Performance: Resists UV-induced darkening and maintains stable transmittance under long-term ultraviolet irradiation
Low Intrinsic Absorption: Ultra-low internal crystal absorption to ensure high light energy utilization in UV working bands
High Crystal Purity & Low Defect: Low impurity content and minimal lattice defects to avoid UV scattering and energy loss
Natural UV Optical Stability: No fluorescence generation under UV excitation, keeping pure ultraviolet optical signals
Good Chemical and Thermal Stability: Inert crystal structure resistant to oxidation, moisture and temperature variation

Applications

Deep UV Optical Systems: Used as core window and lens material for deep ultraviolet optical transmission assemblies
UV Spectroscopy Instruments: Applied in UV-Vis spectrometers and deep UV spectral detection equipment
Ultraviolet Laser Equipment: Suitable for excimer laser and deep UV laser optical windows and protective windows
Semiconductor UV Inspection: Used for wafer inspection and ultraviolet precision detection in semiconductor manufacturing
Environmental & Water Quality Monitoring: Applied in UV-based gas and liquid composition analytical instruments
High-precision UV Optical Experiments: Ideal for laboratory deep UV research and ultraviolet optical testing platforms

Name

Work Email

Organization

Your message to supplier

FAST RESPONSE

Ships from:

China

Sold by:

Henan UM Optics Ltd ✓ Verified Supplier

On FindLight:

since 2024

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

Why is UV grade CaF₂ better than fused silica for deep UV applications?

Fused silica has strong UV absorption below 190 nm and easily produces solarization, while UV grade CaF₂ maintains high transmittance in deep UV range and will not darken under continuous UV radiation.

Does UV grade calcium fluoride generate fluorescence under UV excitation?

No. UV grade CaF₂ single crystal has extremely low impurity content and produces almost no intrinsic fluorescence, ensuring pure UV signal output without background interference.

Can UV grade CaF₂ be used for long-term continuous UV laser work?

Yes. It features excellent thermal stability and radiation resistance, maintaining consistent optical performance and no transmittance attenuation during long-term deep UV laser exposure.
