Description
This is an Acousto-Optic Modulator (AOM) operating at 1064nm wavelength and 120MHz frequency. It features fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability.
CSRayzer Optical Technology offers a wide range of Acousto-Optic Modulators (AOMs) operating in a wide range of wavelengths (from 300 nm to 2000 nm), and frequency (from 35 MHz to 300 MHz). Please inquire to learn more.

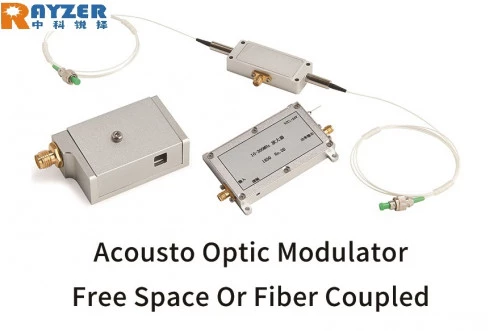

Acousto-Optic Modulator 1064nm 120MHz
Specifications
| Center Wavelength: | 1064 nm |
|---|---|
| Operational Wavelength Range: | 1030 – 1090 nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 120 MHz |
| Light Polarization: | Not Specified |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
| Ultrasonic Velocity: | 4200 m/s |
| Insertion Loss: | 1.2 dB |
| Extinction Ratio (Turn On/Off): | 50 dB |
| Rise‐Time/Fall‐Time: | 50 ns |
| Return Loss: | 40 dB |
| Voltage Standing Wave Ratio: | 1.2 : 1 |
| Average Optical Power: | 5 W |
| Peak Optical Power (Pulse): | 20 kW |
| Input Impedance: | 50 Ω |
| RF Power: | 1.8 W |
| Device Interface: | SMA |
| Fiber Type: | 10/125 |
| Fiber Length: | 1 m |
| Fiber Connector: | FC/APC |
Download Data Sheet
Features
Our AOMs come with the following key characteristics
- Low insertion loss
- Compact size
- Stable performance
- Customized configuration available
- Low and efficient Cost
Applications
Some of the key applications for this Acousto-Optic Modulator include:
- Ultrafast (picosecond and Femtosecond) fiber laser systems
- Optical switching
- Acousto-optic frequency shifters
- Laser pulse pickers
- Amplitude modulation
Frequently Asked Questions
What is the operating wavelength and frequency of the Acousto-Optic Modulator?
The Acousto-Optic Modulator operates at a wavelength of 1064nm and a frequency of 120MHz.
What are the key characteristics of the Acousto-Optic Modulator?
The key characteristics of the Acousto-Optic Modulator include low insertion loss, compact size, stable performance, customized configuration availability, and low and efficient cost.
What are some applications of the Acousto-Optic Modulator?
The Acousto-Optic Modulator is used in ultrafast fiber laser systems, optical switching, acousto-optic frequency shifters, laser pulse pickers, and amplitude modulation.
What is the typical insertion loss of the Acousto-Optic Modulator?
The typical insertion loss of the Acousto-Optic Modulator is 1.2dB.
What is the operating temperature range of the Acousto-Optic Modulator?
The Acousto-Optic Modulator can operate within a temperature range of -20℃ to +60℃.
