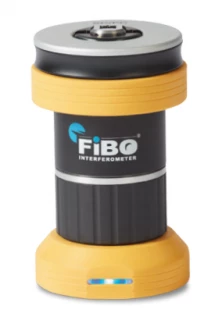

FiBO 200 Interferometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The FiBO® 200 Interferometer is a groundbreaking tool designed for the precise inspection of fiber optic connectors. This innovative device offers an economical yet comprehensive solution for testing the endfaces of fiber optic connectors, ensuring high accuracy and reliability. Its compact and robust design makes it ideal for use both on the production floor and in the field, providing users with a versatile tool for maintaining the integrity of fiber optic connections.
At the heart of the FiBO® 200 is its high-resolution 3D surface metrology, which allows for detailed inspection of connector endfaces. This feature is complemented by automated defect detection, streamlining the inspection process and reducing the potential for human error. The system's quick and easy inspection capabilities make it a valuable asset for professionals in the telecommunications industry, particularly those involved in field service operations.
The FiBO® 200 Interferometer is engineered to deliver precise measurements, including radius of curvature, fiber height, and apex offset. Its high-resolution imaging optics ensure that users receive accurate results every time. The device is also equipped with patented kinematic adapters, which guarantee exact fiber positioning, further enhancing its measurement accuracy. With its user-friendly FiBO Code™ software, the system is easy to operate, making it accessible to both seasoned professionals and newcomers to fiber optic testing.
Designed with compliance in mind, the FiBO® 200 adheres to IEC/TIA measurement standards, ensuring that all inspections meet industry requirements. The system also supports quick and easy ISO/NIST traceable calibration, allowing users to maintain the highest standards of accuracy. With its ability to accept a Fiber Ribbon Stage for ribbon fiber analysis, the FiBO® 200 is a versatile tool that can adapt to a wide range of testing scenarios.
FiBO 200 Interferometer
Specifications |
|
|---|---|
| Interferometer Configuration: | Michelson Interferometer |
| Light Source: | 532nm, 355nm |
| Output Polarization: | Not Specified |
| RMS Repeatability: | Not Specified |
| RMS Precision: | Not Specified |
| Weight: | 3.0 lbs (1.4 kg) |
| Optical Source: | 458nm LED |
| FOV Diagonal: | 450 µm |
| Computer Interface: | USB 3.0 |
| Power Supply: | Power supplied through USB 3.0 port |
| Radius Of Curvature: | 0.1 / 0.25% mm |
| Apex Offset: | 0.5 / 1 µm |
| Fiber Height: | 1 / 1.5nm |
Features
- High-Resolution 3D Metrology: Accurate measurement of fiber endfaces for precise quality control.
- Automated Defect Detection: Provides reliable pass/fail evaluation of connectors.
- Radius of Curvature, Fiber Height & Apex Offset: Detailed metrics for thorough inspection.
- Patented Kinematic Adapters: Ensures exact fiber positioning and reproducible results.
- Quick Manual Focus Adjustment: Efficient inspection of diverse connector types.
- FiBO Code™ Software: User-friendly interface with IEC/TIA compliance.
- ISO/NIST Traceable Calibration: Maintains measurement accuracy and reliability.
- Compact & Portable Design: Lightweight, vibration-insensitive, ideal for field use.
- Versatile Connector Compatibility: Supports SC, LC, FC, ST, MU, LSH, and ribbon fibers.
Applications
- Telecom Field Service: On-site evaluation of fiber optic connectors and ferrules.
- Supplier Qualification: Ensures connector quality and compliance for production vendors.
- Duplex & Ribbon Fiber Testing: Accurate inspection of multi-fiber and standard connectors.
- Specialty Optical Interconnects: Comprehensive testing of PC and APC connectors.
Frequently Asked Questions
The FiBO 200 Interferometer features comprehensive testing, automatic pass/fail surface defect analysis, high resolution imaging optics, patented kinematic adapters, and FiBO Code V3.0 software.
The FiBO 200 Interferometer has a height resolution of 2nm, high resolution of 0.22 µm/px, and standard resolution of 0.45 µm/px. It also has a FOV diagonal of 450 µm and accepts various connector adapters.
The FiBO 200 Package includes the FiBO 200 Interferometer, FiBO Code software, calibration targets, rugged case, and USB 3.0 cable.
The FiBO 200 Interferometer is used for complete and accurate fiber optic connector endface testing.
The FiBO 200 Interferometer can test PC and APC connectors and ferrules, including Duplex SC, LC, Ribbon fibers, and specialty optoelectronic interconnects.
