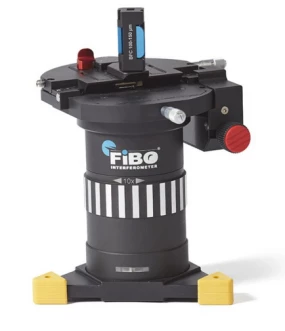

FiBO 300 Interferometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
Introducing the FiBO® 300 Package, a comprehensive solution for specialty fiber testing that combines cutting-edge technology with user-friendly operation. This package includes the FiBO® 300 Interferometer, FiBO Code™ software, a laptop computer, a connector adapter, calibration targets, a rugged case, and a USB 3.0 cable. Designed for versatility, the FiBO® 300 is your go-to tool for analyzing fiber optic endface geometry with precision and ease.
The FiBO® 300 stands out as a versatile phase-shifting interferometer, capable of measuring non-standard, angle-polished, and cleaved bare optical fibers with a single click. This device makes sophisticated interferometry accessible and affordable, allowing users to investigate specialty fibers with unparalleled accuracy. Its compact and vibration-insensitive design ensures reliable performance in various environments.
Equipped with the powerful and intuitive FiBO Code™ software, the FiBO® 300 simplifies the process of fiber analysis. The software is compatible with Windows® 7, 8, and 10, providing a seamless user experience. The package also includes optional NIST/ISO-traceable 2D/3D calibration targets, ensuring that your measurements are both accurate and reliable.
With its high-resolution 3D surface profiling and selectable optical magnification options (3.4x, 10x, and 20x), the FiBO® 300 is designed to meet the demands of modern fiber analysis. Whether you're working with bare fibers up to 1500 microns in diameter, specialty fiber endfaces, or high-power laser components, this interferometer delivers precise results every time.
FiBO 300 Interferometer
Specifications |
|
|---|---|
| Interferometer Configuration: | Michelson Interferometer |
| Light Source: | 532nm, 355nm |
| Output Polarization: | Not Specified |
| RMS Repeatability: | Not Specified |
| RMS Precision: | Not Specified |
| Size: | Height 6.5 |
| Weight: | 3.0 lbs (1.4 kg) |
| Optical Source: | 458nm LED |
| FOV Diagonal: | 1300 µm, 450 µm, 225 µm |
| Computer Interface: | USB 3.0 |
| Power Supply: | Power supplied through USB 3.0 port |
| Radius Of Curvature: | 0.1 / 0.25% mm |
| Apex Offset: | 0.5 / 1 µm |
| Fiber Height: | 1 / 1.5nm |
Features
- High-Resolution 3D Profiling: Provides accurate fiber endface measurements with nanometer-scale resolution.
- Versatile Fiber Compatibility: Measures bare, cleaved, angle-polished, and specialty fibers up to 1500 µm in diameter.
- Multi-Magnification Options: 3.4x, 10x, and 20x optical magnification for detailed inspection.
- Kinematic Connector Adapters: Ensures sub-micron alignment for precise endface geometry evaluation.
- Expandable System: Compatible with VATS™, BFC™, and Fiber Ribbon Stage for angled and ribbon fiber analysis.
- Vibration-Insensitive Design: Compact and stable for reliable operation in lab or field settings.
- Advanced Software: FiBO Code™ software provides easy-to-use interface, data capture, and analysis.
- Optional Calibration Targets: NIST/ISO-traceable 2D/3D targets ensure accurate and repeatable measurements.
Applications
- Specialty Fiber Analysis: Ideal for non-standard, high-power, and large-diameter fibers.
- Connector Endface Evaluation: Supports single- and multi-mode connectors with various polish types.
- Micro-Optic Component Inspection: Enables precise measurement of micro-optics and ferrules.
- Ribbon Fiber Testing: Facilitates endface geometry characterization of fiber ribbons.
- High-Power Laser Components: Suitable for measuring critical fiber components in
- high-power laser systems.
Frequently Asked Questions
The FiBO 300 Interferometer is suitable for cleaved fiber inspection, laser and mechanical ribbon fibers, specialty fiber endface analysis, specialty optoelectronic interconnects, bare fiber measurement up to 1500 microns in diameter, single and multi-mode optical connector testing, high power laser components, angle polished fiber up to 50 degrees, micro-optic components, and waveguides.
The FiBO 300 Interferometer features high resolution 3D surface profiling, autofocus optics, selectable optical magnification 3.4x, 10x and 20x, Kinematic Adapters for fiber optic connector endface defect and geometry testing, and powerful, easy-to-use FiBO Code software for surface data analysis.
The specifications of the FiBO 300 Interferometer include single- and multi-mode optical connector testing, cleaved fiber inspection, angle-polished fiber up to 50 degrees, micro-optic components, height resolution of 2nm, high resolution of 0.64 µm/px, and FOV diagonal of 1300 µm.
The FiBO 300 Package includes the FiBO 300 Interferometer, FiBO Code software, laptop computer, 1 connector adapter, calibration targets, rugged case, and USB 3.0 cable.
The FiBO 300 Interferometer is used for the analysis of fiber optic endface geometry.
