Product Description: The QUAD-4TRACK 4-quadrant laser position sensing module is an advanced position sensitive device for laser beam position measurements. It is used with the Pulse Track Applications Software, which creates a full featured data acquisition system for measuring and displaying laser energy and beam position.
About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

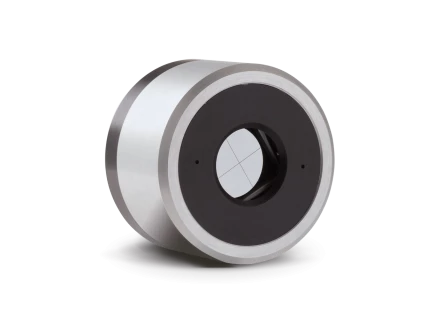

4-Quadrant Laser Position Sensing Detector QUAD-20-MT-P-D0
Specifications
| Sensor Size: | 20 mm |
|---|---|
| Max Power: | 0.2 W |
| Min Detectable Power: | 0.002 mW |
| Max Power Density: | 100000 kW/cm^2 |
| Spectral Range: | 0.1 – 3000 um |
| Maximum Average Power: | 200 mW |
| Noise Equivalent Power: | 2 μW |
| Spectral Range: | 0.1 - 3000 μm |
| Typical Rise Time: | 0.02 sec |
| Typical Power Sensitivity: | 2000 V/W |
| Minimum Beam Size: | 10 mm Ø |
| Minimum Position Resolution: | 10 μm |
| Maximum Chopping Frequency: | 50 Hz |
| Calibration Uncertainty: | ±4 % |
| Maximum Average Power Density: | 100 MW/cm² |
| Maximum Energy Density: | 50 mJ/cm² |
| Aperture Width: | 20 mm |
| Aperture Height: | 20 mm |
| Absorber: | MT |
| Dimensions: | 63.5Ø X 40.6D mm |
| Weight: | 0.18 kg |
Download Data Sheet
Features
The QUAD-4TRACK position sensitive device is used with compatible Gentec-EO probes, the DPQ-J9, DPQ-J20, DPQ-R9, and DPQ-R20. The J series probes are used for pulsed laser applications, and the R series are used for Radiometric application. The QUAD-4TRACK can measure pulsed lasers up to 1000pps on each channel when using the J series probes. When using the R series probes the beam modulation rate can be set from 5Hz to 50Hz.
Applications
The 4-Quadrant Laser Position Sensing Detector QUAD-20-MT-P-D0 is used for laser beam position sensing applications in laser optics, beam alignment, beam tracking and control, etc.
