Description

The Wedge-XB laser series is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm. Second, third and fourth harmonics options (532nm, 355nm and 266nm) and wavelength conversion option (1.5um) widen the Wedge’s applications range. Based on a proprietary fast active Q-Switching technology, these sealed DPSS lasers are insensitive to vibrations and harsh environments.

The compact and lightweight package represents a great benefit in LIDAR and other aerospace applications, while short pulses and high peak powers, with relatively low heat generation, allows for efficient ablation and non-linear interaction in materials used for OEM applications such as micro-machining and specialty marking of glass, metals, polymers and other hard and soft materials, as well as scientific applications, including LIBs, spectroscopy and medical diagnostics.

Wedge is a flexible platform for realizing custom solutions such as meeting specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications. High power amplifiers can be added to standard oscillators in order to increase performance and meet the demands of a variety of industrial and aerospace applications.

Several Wedge based MOPA lasers are currently employed as “optical engines” in high-demanding field applications. Performance, flexibility, industry proven reliability and overall low total cost of ownership makes the Wedge Series an ideal solution for many industrial, defense and scientific applications.

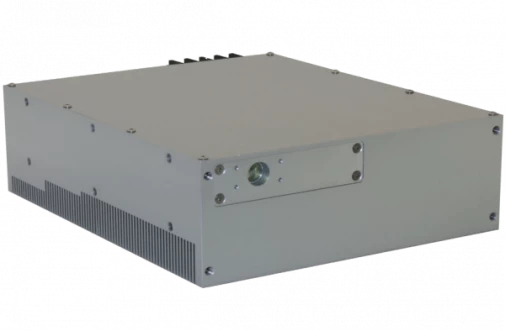

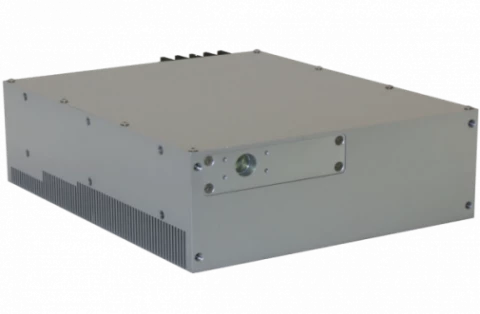

Wedge XB 355nm: 355nm Nanosecond Laser

Specifications

Avg. Power: 0.6 W
Wavelength: 355 nm
Repetition Rate: 1 – 1 kHz
Spatial Mode (M^2): 5
Pulse Duration: 1.5 ns
Cooling: Air

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Up to 800uJ pulse energy
  • <1.5ns pulse width
  • Single shot to 1kHz
  • Monolithic design
  • Air cooling
  • Low heat waste
  • MOPA configurations

Applications

  • Micromachining of glass
  • Specialty marking
  • Thin film removal
  • Non-linear spectroscopy
  • Harmonic and parametric generation

Frequently Asked Questions

What is the Wedge XB 355nm laser capable of?
The Wedge XB 355nm laser is a sub-nanosecond, 4mJ, single shot to 2KHz, air-cooled laser capable of 4MW of peak power at 1064nm.
What are the different harmonics options available with the Wedge XB 355nm laser?
The Wedge XB 355nm laser offers second, third, and fourth harmonics options at 532nm, 355nm, and 266nm respectively.
What kind of applications is the Wedge XB 355nm laser suitable for?
The Wedge XB 355nm laser is suitable for a wide range of applications, including LIDAR and other aerospace applications, micromachining of glass, specialty marking, thin film removal, non-linear spectroscopy, and harmonic and parametric generation.
Is the Wedge XB 355nm laser sensitive to vibrations and harsh environments?
No, the Wedge XB 355nm laser is insensitive to vibrations and harsh environments due to its proprietary fast active Q-Switching technology.
Can the Wedge XB 355nm laser be customized to meet specific requirements?
Yes, the Wedge XB 355nm laser is a flexible platform that can be customized to meet specific time/energy requirements, vibe/shock or other extreme environmental conditions, as well as compliance to Mil-specifications.

Got more questions? Use the inquiry form to ask the supplier directly.
