Description

The Sol 6W 1064nm Q-Switched Compact ns DPSSL Laser is a high-performance, all-solid-state laser designed for precision material processing and medical applications. With a maximum pulse energy of 300 µJ and a pulse width range of 15 to 60 ns, it delivers exceptional power and pulse duration control.

The laser operates at a repetition rate ranging from single shot to 100 kHz, offering flexibility for various high-speed applications. Its linear polarization (100:1) and excellent beam quality (M² < 2 at 10 kHz) ensure high precision and optimal results.

The system features an air-cooled design, minimizing heat waste and reducing the need for complex cooling systems. Compact and lightweight, with dimensions of 235 x 105 x 95 mm³ and weighing less than 4.5 kg, it can be easily integrated into existing setups.

With a low electrical requirement of 24V DC, the Sol 6W 1064nm Laser is ideal for industries like material marking, laser engraving, and medical laser applications. Customization options, including beam expansion optics and circular polarization, make it a versatile solution for various demanding applications.

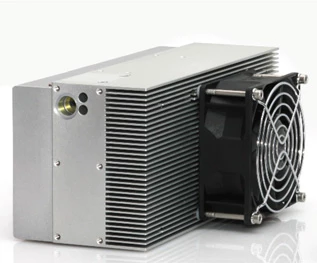

SOL 6W-1064nm: 1064nm Nanosecond Laser

Specifications

Avg. Power: 6 W
Wavelength: 1064 nm
Repetition Rate: 0.001 – 100 kHz
Spatial Mode (M^2): 1.5
Pulse Duration: 15 ns
Pulse-to-Pulse Stability (RMS): 5 %
Cooling: Air
Pulse Energy: Up to 300 µJ
Polarization: Linear, 100:1
Beam Diameter (1/e²): < 8 mm
Beam Quality (M²): < 2 @ 10 kHz
Electrical Requirements: 24 V DC, < 10 A
Mechanical Dimensions: 235 x 105 x 95 mm³
Weight: < 4.5 kg
Optional Power Supply: 100-230 V AC DC Power Supply

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Pulse Energy: Up to 300 µJ for high power output
  • Pulse Width: 15 to 60 ns, providing short-duration pulses for precise control
  • Repetition Rate: Single shot to 100 kHz, offering versatility for different application speeds
  • Solid-State Design: All-solid-state construction for enhanced reliability and longevity
  • Air-Cooled: Efficient air-cooling system reduces heat waste
  • Compact and Lightweight: Easy integration with mechanical dimensions of 235 x 105 x 95 mm³ and weight < 4.5 kg

Applications

  • Material Marking: Ideal for engraving and marking metals, plastics, and other materials
  • Material Processing: High precision for cutting, drilling, and engraving various materials
  • Medical Applications: Used in laser surgery and dermatology for tissue removal and marking
  • Industrial Manufacturing: Excellent for automated systems requiring high-speed laser processes
  • Research and Development: A versatile tool for laser-related research in physics, optics, and materials science

Frequently Asked Questions

What is the power range of the SOL-06 laser?
The power range of the SOL-06 laser is 4W to 40W in the IR, 3W to 10W at 532nm and 2W of 355nm.
What type of cooling system does the SOL-06 laser have?
The SOL-06 laser has an air-cooled DPSS nanosecond laser with low noise fans.
What are the applications of the SOL-06 laser?
The applications of the SOL-06 laser include laser marking, laser scribing, laser micro-machining, and nonlinear optics.
What is the design of the SOL-06 laser?
The SOL-06 laser has a single unit design based on a permanently aligned monolithic optical resonator integrated with 24 Vdc powered driving electronics.
What is the wavelength of the SOL-06 laser?
The SOL-06 laser has a wavelength of 1064nm.

Got more questions? Use the inquiry form to ask the supplier directly.
