Description

The Quantas-Q2HE-266 series is a Diode-Pumped Solid State (DPSS) laser designed for precise delivery of high-energy pulses at the 266 nm ultraviolet wavelength. This series achieves pulse energies ranging from 1.5 mJ to 5 mJ with pulse durations under 8 ns and a repetition rate up to 10 Hz, suitable for diverse scientific and industrial applications requiring UV light.

Technical Specifications and Utility: This series is optimized for applications that necessitate the unique properties of ultraviolet light, such as photolithography, spectroscopy, and material processing. The 266 nm wavelength offers significant advantages in terms of material interaction and resolution, making this series a valuable tool in environments where precision is paramount.

Design and Integration Features: The Quantas-Q2HE-266 maintains an air-cooled design, eliminating the need for external cooling systems and simplifying integration into existing setups. The system's compactness and efficiency are designed to meet the demands of laboratories and industrial environments where space and energy consumption are considerations.

Operational Efficiency and Reliability: The series is engineered for reliable operation with minimal maintenance requirements. It features high-speed triggering and a jitter of less than 0.5 ns RMS, facilitating synchronization with other instruments and ensuring precise timing in applications. The inclusion of a long-life pump diode enhances the system's durability and operational lifespan.

Control and Monitoring: Equipped with a user-friendly graphical interface, the Quantas-Q2HE-266 series allows for straightforward control and monitoring. Remote diagnostics and control capabilities are available via an Ethernet connection, providing flexibility in operation and maintenance.

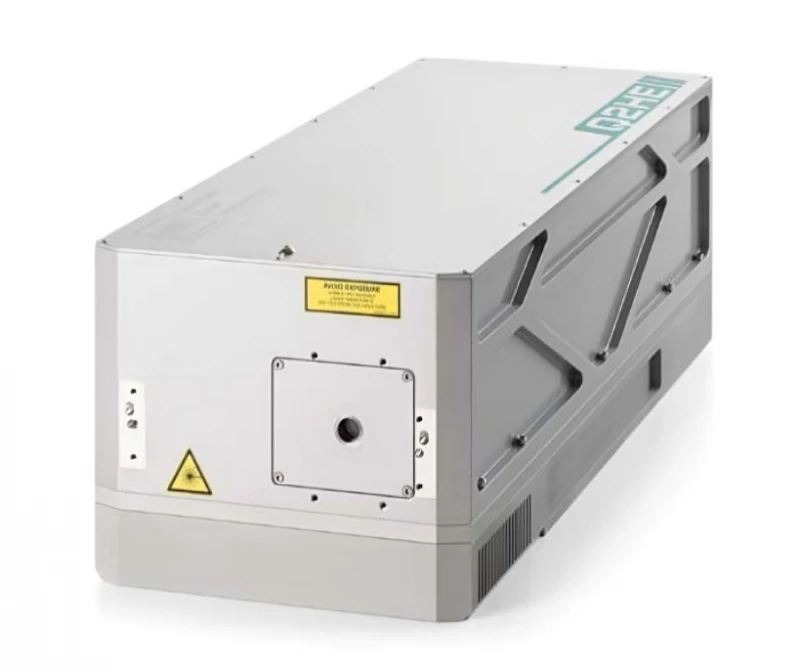

Quantas-Q2HE-266: High Energy Compact Nanosecond DPSS Laser

Specifications

Avg. Power: 4 W
Wavelength: 266 nm
Repetition Rate: 0.01 – 0.1 kHz
Pulse Duration: 7 ns
Pulse-to-Pulse Stability (RMS): 0.5 %
Cooling: Air
Pulse Energy: 5 – 15 mJ
Power Drift: ± 3.0 %
Polarization: Linear, horizontal
Jitter (RMS): < 0.5 ns
Transmission Range: 1 – 95 %
Laser Head (W×L×H): 190 × 408 × 155 mm³
Controller Unit (W×L×H): 108 × 191 × 59 mm³
AC/DC Power Adapter, Typical (W×L×H): 89 × 422 × 330 mm³
Ambient Temperature: 15 – 30 ℃
Relative Humidity (non-condensing): 10 – 80 %
Mains Voltag: 90 – 230 VAC, single phase, 47 – 63 Hz
Lifetime Of Pump Diodes: > 2 G shots
Beam Divergence: <1 mrad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Fundamental Wavelength Options: 1053nm & 1064nm
  • Harmonic Generation: Optional 2nd/3rd/4th/5th
  • Peak Power: Up to 120mJ
  • Average Power: Up to 4W
  • Repetition Rate: Up to 100Hz
  • High-speed Triggering
  • Jitter: 0.5ns RMS
  • Remote Monitoring & Diagnostics
  • User-friendly GUI

Applications

  • Laser microprocessing
  • Semiconductor inspection
  • Micromachining
  • UV-induced fluorescence
  • Spectroscopy
  • Photochemistry
  • Nanotechnology
  • UV lithography

Frequently Asked Questions

What range of pulse energy does the Quantas-Q2HE-266 provide?
This series offers pulse energies ranging from 1.5 mJ to 5 mJ, catering to high-energy applications.
Can you specify the pulse width and repetition rate for the Quantas-Q2HE-266?
The laser produces pulses with widths under 8 ns and operates at repetition rates up to 10 Hz.
How does the Quantas-Q2HE-266 manage cooling?
The laser utilizes an air-cooled design, negating the need for external cooling systems and simplifying installation.
Is the Quantas-Q2HE-266 suitable for integration with other experimental setups?
Yes, its compact design and high-speed triggering capabilities make it easily integrable with a variety of scientific and industrial equipment.
How reliable is the Quantas-Q2HE-266 in terms of operation?
The laser is built with a robust design, including a long-life pump diode, ensuring reliable performance with minimal maintenance.
Are there any options for pulse energy monitoring or attenuation?
Yes, the Quantas-Q2HE-266 can be equipped with optional pulse energy monitors and attenuators to provide precise control over laser output.

Got more questions? Use the inquiry form to ask the supplier directly.
