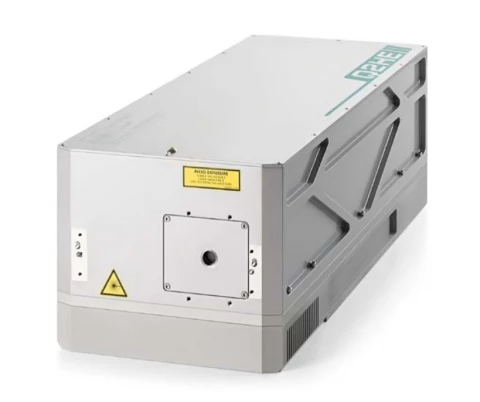

Quantas-Q2HE-213 High Energy Compact Nanosecond DPSS Laser
Description
The Quantas-Q2HE-213 series stands at the forefront of Diode-Pumped Solid State (DPSS) laser technology, designed to deliver high-energy pulses at the deep ultraviolet wavelength of 213 nm. This series is capable of producing pulse energies up to 3.5 mJ with pulse durations shorter than 8 ns at repetition rates up to 10 Hz, making it an invaluable tool for applications that require intense, precise UV pulses.
Tailored for demanding applications such as UV photolithography, spectroscopy, and materials science, the Quantas-Q2HE-213 series ensures high peak power pulses for effective interaction with materials at the molecular level. High-speed triggering capabilities and minimal jitter (<0.5 ns RMS) enhance its utility in synchronized systems and time-sensitive processes.
Featuring an air-cooled, compact design, the Quantas-Q2HE-213 series underscores efficiency and user-friendliness, enabling straightforward integration into various setups without the need for extensive cooling infrastructure. Despite its high-energy output, the series maintains a turnkey operation, further facilitated by a user-friendly graphical user interface (GUI) for ease of control and monitoring.
Quantas-Q2HE-213 High Energy Compact Nanosecond DPSS Laser
Specifications |
|
|---|---|
| Avg. Power: | 4 W |
| Wavelength: | 213 nm |
| Repetition Rate: | 0.01-0.1kHz |
| Spatial Mode (M^2): | -- |
| Pulse Duration: | <7 ns |
| Pulse-to-Pulse Stability (RMS): | < 0.5 % |
| Cooling: | Air |
| Pulse Energy: | 1.5 to 4 mJ |
| Beam Divergence: | <1 mrad |
| Polarization: | Linear, horizontal |
| Jitter (RMS): | < 0.5 ns |
| Transmission Range: | 1-95 % |
| Laser Head (W×L×H): | 190 × 408 × 155 mm³ |
| Controller Unit (W×L×H): | 108 × 191 × 59 mm³ |
| AC/DC Power Adapter, Typical (W×L×H): | 89 × 422 × 330 mm³ |
| Ambient Temperature: | 15-30 °C |
| Relative Humidity (non-condensing): | 10 – 80 % |
| Mains Voltage: | 90 – 230 VAC, single phase, 47 – 63 Hz |
| Lifetime Of Pump Diodes: | > 2 G shots |
Features
- Fundamental Wavelength Options: 1053nm & 1064nm
- Harmonic Generation: Optional 2nd/3rd/4th/5th
- Peak Power: Up to 120mJ
- Average Power: Up to 4W
- Repetition Rate: Up to 100Hz
- High-speed Triggering
- Jitter: 0.5ns RMS
- Remote Monitoring & Diagnostics
- User-friendly GUI
Applications
- Laser microprocessing
- Semiconductor inspection
- Micromachining
- UV-induced fluorescence
- Spectroscopy
- Photochemistry
- Nanotechnology
- UV lithography
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Quantas-Q2HE-213 operates at the deep ultraviolet wavelength of 213 nm, suitable for a wide range of UV-specific applications.
This series delivers pulse energies up to 3.5 mJ, offering substantial power for precision applications.
Featuring pulse durations shorter than 8 ns, the series can operate at repetition rates up to 10 Hz.
Ideal for UV photolithography, spectroscopy, and materials science, the laser's UV output is particularly valuable for applications requiring high precision and minimal thermal damage.
Built with a long-life pump diode (>2 Giga-shots) and an air-cooled design, the series minimizes maintenance while enhancing durability.
Yes, it features internal or external triggering modes, allowing for precise synchronization with external experimental setups or instruments.
The series is efficient, with power consumption tailored to its compact and energy-efficient design, contributing to its cost-effectiveness and environmental friendliness.
