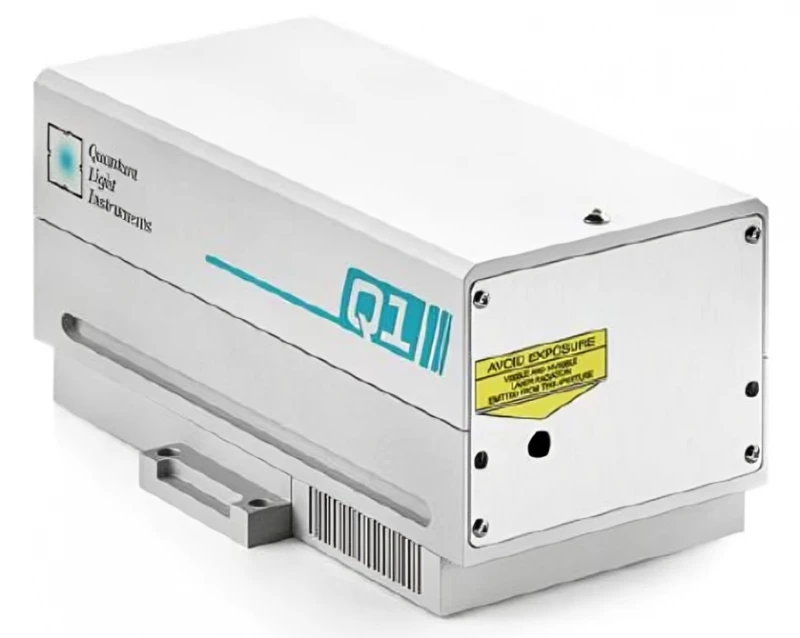

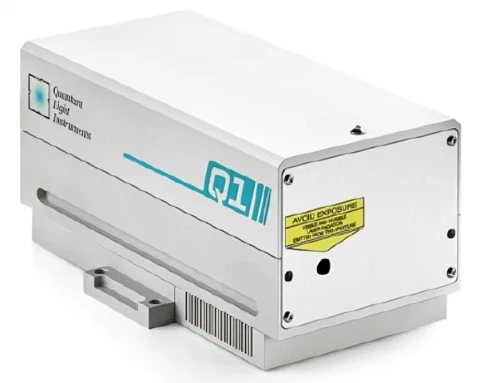

Quantas-Q1-266: High Energy Compact Nanosecond DPSS Laser

Description

The Quantas-Q1-266 series embodies the latest advancements in Diode-Pumped Solid State (DPSS) laser technology, optimized for delivering high-energy pulses at the deep ultraviolet (DUV) wavelength of 266 nm. This series is capable of generating pulse energies ranging from 1.5 mJ to 5 mJ, with pulse durations below 8 ns at a repetition rate of up to 10 Hz, making it particularly suited for applications that require precise, high-energy UV light.

Optimized Performance for Precision Applications: Designed to meet the stringent demands of applications such as precision materials processing, spectroscopy, and photolithography, the Quantas-Q1-266 DUV laser provides high peak power pulses, ensuring effective interaction with a wide variety of materials. The incorporation of high-speed triggering and minimal jitter (<0.5 ns RMS) enhances its suitability for applications requiring high temporal precision.

Innovative Design for Enhanced Usability: The series boasts an air-cooled, compact design that facilitates easy integration into existing setups without the need for extensive cooling infrastructure. Despite its high-energy output, the Quantas-Q1-266 DUV DPSS laser maintains turnkey performance, further simplified by a user-friendly web interface for effortless operation and monitoring.

Specifications

Avg. Power:	0.5 W
Wavelength:	266 nm
Repetition Rate:	0.001 – 0.05 kHz
Pulse Duration:	8 ns
Pulse-to-Pulse Stability (RMS):	4 %
Cooling:	Air
Pulse Energy:	0.3 to 6 mJ
Beam Divergence:	1.5 mrad
Beam Pointing Stability:	<10 mrad
Polarization:	Linear, horizontal
Laser Head ( W×L×H):	110 × 231× 112 mm³
Controller Unit (W×L×H):	108 × 191 × 59 mm³
Power Adapter (W×L×H):	50 × 125 × 31 mm³
Harmonic Generator (W×L×H):	110 × 242 × 112 mm³
Ambient Temperature:	15 – 30 °C
Relative Humidity (non-condensing):	10 – 80 %
Mains Voltage:	90 – 230 VAC, single phase, 47 – 63 Hz
Power Drif:	± 3.0 %

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Compact diode-pumped Q-switched laser: The Q1 Series is a compact, energy-efficient DPSS Q-switched laser designed for high peak power pulsed laser applications.
Air-cooled, water-free operation: Fully air-cooled laser design eliminates the need for chillers, cooling water, and bulky external power supplies, simplifying installation and maintenance.
High pulse energy output: Delivers up to 40 mJ pulse energy at 10 Hz or up to 10 mJ at 50 Hz, providing strong performance for demanding pulsed laser processes.
Variable pulse repetition rate: Supports operation up to 50 Hz pulse repetition rate, with flexible triggering options for integration into laboratory, industrial, and OEM systems.
Short nanosecond pulses: Produces 7–10 ns pulse duration for applications requiring high peak power, precise energy delivery, and efficient nonlinear conversion.
Choice of 1053 nm or 1064 nm output: Configurable with Nd:YLF at 1053 nm or Nd:YAG at 1064 nm to match application-specific wavelength requirements.
Excellent beam quality and low divergence: Low beam divergence enables efficient focusing and supports effective conversion to harmonic wavelengths using optional harmonic generator modules.
Stable Nd:YLF performance: The athermal properties of the Nd:YLF crystal help maintain consistent beam divergence and beam profile across operation from single shot to maximum repetition rate.
Up to 0.5 W average output power: Provides reliable pulsed laser output with up to 0.5 W average power at the fundamental wavelength.
Lightweight and portable: Total system weight is less than 5 kg including power supply, making it well suited for space-limited optical tables, portable systems, and field-deployable setups.
Integrated laser electronics: All key laser electronics are built into the Q1 laser head, reducing system footprint and eliminating the need for large external electronics racks.
Turnkey user-friendly operation: Designed as a low-maintenance turnkey pulsed laser system with simple setup, reliable operation, and intuitive control.
Long pump diode lifetime: Pump diode lifetime exceeds 2 billion shots, supporting long-term reliability and reduced operating costs.
Built-in synchronization pulse generator: Integrated sync pulse output enables precise triggering of user equipment such as cameras, spectrometers, detectors, delay generators, and data acquisition systems.
Remote monitoring and control: Built-in Ethernet interface allows remote laser monitoring and control for automated experiments, OEM integration, and system-level operation.
Optional motorized attenuator: Available with an attachable PC-controlled motorized attenuator for convenient pulse energy adjustment without disturbing optical alignment.
Optional pulse energy monitor: Supports an attachable pulse energy monitoring module for real-time energy tracking and process control.
Optional fiber-coupled output: Fiber-coupled configuration is available for applications requiring flexible beam delivery and simplified system integration.
Optional harmonic generation: Compatible with stand-alone 2nd, 3rd, 4th, or 5th harmonic generator modules for access to UV and visible wavelengths.
Efficient harmonic conversion: Low-divergence output beam is optimized for use with the optional H1 Series harmonic generator, enabling efficient wavelength conversion for spectroscopy and materials processing.
Optional shared mounting baseplate: Available baseplate enables stable mounting of the Q1 laser together with an H1 harmonic generator or fiber coupler.
UV optics protection option: Stand-alone air-purging unit is available to support long lifetime of UV optics during harmonic operation.
Ideal for LIBS and laser ablation: High pulse energy and short pulse width make the Q1 suitable for Laser Induced Breakdown Spectroscopy, laser ablation, and material analysis.
Optimized for spectroscopy applications: Well suited for Time-of-Flight Spectroscopy, Light Induced Fluorescence spectroscopy, nonlinear laser spectroscopy, flash photolysis, and photoacoustic measureme

Applications

Laser Induced Breakdown Spectroscopy (LIBS)
Laser ablation
Time-of-Flight Spectroscopy (TOFS)
Light Induced Fluorescence (LIF) Spectroscopy
Non-linear laser spectroscopy
Flash photolysis
Photoacoustics
Metrology

Request Quote

To: RPMC Lasers, Inc.
Re: Quantas-Q1-266: High Energy Compact Nanosecond DPSS Laser

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: RPMC Lasers, Inc. ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the pulse energy range of the Quantas-Q1-266 series DPSS laser?

This series delivers pulse energies from 1.5 mJ to 5 mJ, providing significant power for precision applications.

How fast can the Quantas-Q1-266 DUV DPSS laser pulse?

It features pulse durations shorter than 8 ns with the ability to operate at repetition rates up to 10 Hz.

What makes the Quantas-Q1-266 series user-friendly?

With its high-speed triggering, low jitter, and air-cooled design, the series is designed for ease of use and straightforward integration into various systems.

What applications can benefit from the Quantas-Q1-266 series DUV DPSS laser?

Ideal for spectroscopy, photolithography, materials processing, and DNA analysis, the laser's UV output is particularly valuable for precision applications requiring minimal thermal damage.

How does the Quantas-Q1-266 ensure operational reliability?

Built with a long-life pump diode (>2 Giga-shots) and an air-cooled design, the series minimizes maintenance and enhances durability.

Can the Quantas-Q1-266 series be synchronized with other equipment?

Yes, it features internal or external triggering modes, allowing precise synchronization with external experimental setups or instruments.
