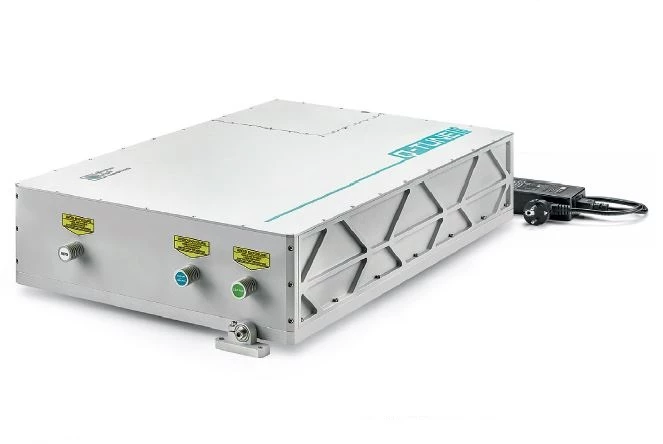

Thumbnail of Q-TUNE: Tunable DPSS Laser photo 1

Description

The Q-TUNE series offers a highly efficient, air-cooled, tunable wavelength laser solution suitable for a variety of applications such as temporally resolved spectroscopy, metrology, photo-acoustic imaging, and remote sensing. With automated tuning from 410 to 2300 nm and an optional harmonic option for 210-2300 nm, this laser system provides up to 8 mJ pulse energy in the visible range with pulse durations shorter than 5 ns, making it ideal for demanding scientific and industrial tasks.

Its water-free, air-cooled pump laser design ensures reliability and ease of maintenance, while features like seamless integration with Optical Parametric Oscillator (OPO) and air purging for UV optics enhance its versatility.

Q-TUNE: Tunable DPSS Laser

Visit the RPMC Lasers, Inc. Store

Specifications

Avg. Power: 0.21 W
Wavelength: 410 nm
Repetition Rate: 0.01 – 0.1 kHz
Pulse Duration: 5 ns
Pulse-to-Pulse Stability (RMS): 4.5 %
Cooling: Air
Pulse Energy: 8.0 mJ
Linewidth: < 6 cm-1
Power Drif: ± 3.0 %
Polarization: vertical
Typical Beam Divergence: 3-5 mrad
Ambient Temperature: 15-25 °C
Mains Voltage: 90–230 VAC, single phase, 47–63 Hz
Pump Diode Lifetime: >2 G shots

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Hands-free, automated tuning from 410 to 2300 nm
  • Harmonic option for 210-2300 nm
  • Microprocessor controlled – self-optimization/self-calibration
  • Up to 8 mJ pulse energy in visible range
  • Turnkey performance & User-friendly web interface
  • Water-free – Air-cooled pump laser design
  • Seamless laser and Optical Parametric Oscillator (OPO) integration
  • 2 G shot pump diode lifetime
  • Internal or external triggering modes
  • Separate output ports for access to pump laser wavelengths
  • Air purging for long lifetime of UV optics
  • Low power consumption – from 50 to 150 W depending on model

Applications

  • Temporally resolved spectroscopy
  • Metrology
  • Photo-acoustic imaging
  • Remote sensing

Frequently Asked Questions

What is the tunable wavelength range of the Q-TUNE series?
The Q-TUNE series is tunable from 410 to 2300 nm, with an optional harmonic generator extending the range down to 210 nm, accommodating a wide array of applications across the visible to near-infrared spectrum.
How does the Q-TUNE series facilitate ease of operation?
This series features hands-free, automated tuning controlled by a microprocessor, enabling self-optimization and self-calibration for straightforward operation and consistent performance.
What pulse energies does the Q-TUNE deliver?
The Q-TUNE can deliver up to 8 mJ of pulse energy in the visible range, providing substantial power for a variety of scientific and industrial applications.
Can the Q-TUNE series be integrated with an OPO?
Yes, the series is designed for seamless integration with Optical Parametric Oscillators (OPO), broadening its utility by enabling access to a wider range of wavelengths.
What are the pulse duration specifications for the Q-TUNE?
The Q-TUNE series features pulse durations shorter than 5 ns, suitable for time-resolved measurements and high-precision applications.
How does the Q-TUNE series accommodate synchronization with other equipment?
Offering both internal and external triggering modes, the Q-TUNE series allows for precise synchronization with external experimental setups or instruments.
What are the power consumption characteristics of the Q-TUNE series?
The series is designed for efficiency, with power consumption ranging from 50 to 150 W depending on the model, contributing to lower operational costs.

Got more questions? Use the inquiry form to ask the supplier directly.
