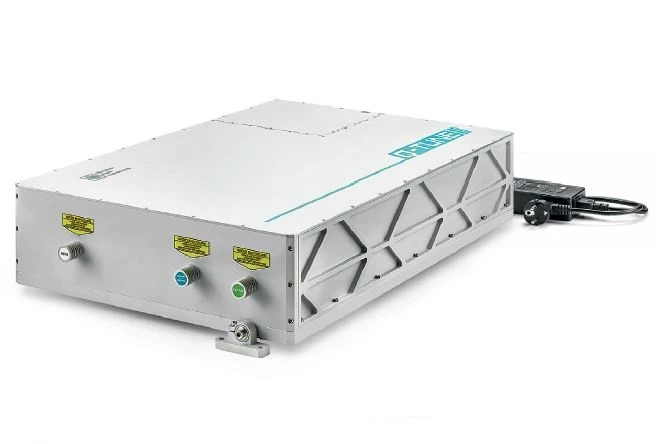

Thumbnail of Q-TUNE-G: Tunable DPSS Laser photo 1

Description

The Q-TUNE-G series represents the forefront of tunable Diode-Pumped Solid State (DPSS) laser technology, engineered for precision and versatility across a wide wavelength spectrum from 680 to 2100 nm. This series distinguishes itself with a microprocessor-controlled, hands-free tuning capability, facilitating seamless wavelength selection for diverse scientific and technological applications.

Optimized Performance and Flexibility: Delivering pulse energies up to 12 mJ in the near-infrared (IR) range and maintaining a narrow linewidth below 10 cm⁻¹, the Q-TUNE-G series tunable DPSS laser is particularly suited for sophisticated applications such as photoacoustic imaging, non-linear spectroscopy, and temporally resolved spectroscopic investigations. The system's ability to operate up to 100 Hz pulse repetition rates enhances its utility in dynamic experimental setups requiring rapid data acquisition.

Advanced Design for Enhanced Usability and Reliability: Incorporating a user-friendly web interface, the Q-TUNE-G laser system simplifies operation, allowing for intuitive control and monitoring. The air-cooled, water-free pump laser design not only reduces the system's maintenance requirements but also contributes to its compact footprint, making it an ideal choice for space-constrained laboratories and integrated systems.

Seamless Integration and Advanced Features: The series is designed for turnkey operation and features seamless integration of the laser and Optical Parametric Oscillator (OPO), ensuring optimal performance with minimal setup. Additional functionalities include internal and external triggering modes, offering flexibility for synchronization with external experimental setups, and separate output ports for accessing pump laser wavelengths, expanding the system's application potential.

Q-TUNE-G: Tunable DPSS Laser

Visit the RPMC Lasers, Inc. Store

Specifications

Avg. Power: 0.264 W
Wavelength: 680 nm
Repetition Rate: 0.01 – 0.1 kHz
Pulse Duration: 4 ns
Pulse-to-Pulse Stability (RMS): 3 %
Cooling: Air
Pulse Energy: >11 mJ
Power Drif: ± 3.0 %
Typical Beam Diameter: 3-6 mm
Typical Beam Divergence: <5 mrad
Linewidth: <10 cm-¹
Pump Diode Lifetime: >2 G shots
Ambient Temperature: 15-25 °C
Relative Humidity (non-condensing): 10-80 %
Mains Voltage: 90 – 230 VAC, single phase, 47 – 63 Hz

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Hands-free, automated tuning from 680 to 2100 nm
  • Microprocessor controlled – self-optimization/self-calibration
  • Up to 12 mJ pulse energy in near-IR range
  • Turnkey performance & User-friendly web interface
  • Water-free – Air-cooled pump laser design
  • Seamless laser and Optical Parametric Oscillator (OPO) integration
  • 2 G shot pump diode lifetime
  • <10 cm-¹ linewidth (broadband by request)
  • Up to 100 Hz pulse repetition rate
  • Internal or external triggering modes
  • Separate output ports for access to pump laser wavelengths
  • Low power consumption – from 50 to 150 W depending on model
  • Optional air purging for long lifetime of optics

Applications

  • Photoacoustic imaging
  • Non-linear spectroscopy
  • Metrology

Frequently Asked Questions

What is the wavelength tuning range of the Q-TUNE-G series tunable DPSS laser?
The Q-TUNE-G series offers an extensive tuning range from 680 nm to 2100 nm, catering to a wide spectrum of applications in both scientific research and industrial processes.
How is the Q-TUNE-G series controlled for precise operation?
Featuring a microprocessor-controlled system, the Q-TUNE-G series provides hands-free, automated tuning along with self-optimization and self-calibration capabilities, ensuring precise and reliable laser operation.
What pulse energy does the Q-TUNE-G tunable laser provide?
Capable of delivering up to 12 mJ of pulse energy in the near-IR range, the Q-TUNE-G series is well-suited for applications requiring high pulse intensity.
What are the user interface features of the Q-TUNE-G series tunable DPSS laser?
The series boasts a user-friendly web interface that allows for easy operation and control of the laser system from any computer or smart device browser, enhancing operational convenience.
How does the air-cooled design of the Q-TUNE-G benefit users?
The water-free, air-cooled design of the Q-TUNE-G series minimizes maintenance requirements and eliminates the need for external cooling systems, making it an efficient and compact solution for various settings.
Can the Q-TUNE-G series be integrated with other experimental setups?
Yes, with features like internal and external triggering modes and separate output ports for pump laser wavelengths, the Q-TUNE-G series is easily integrable with a broad range of experimental configurations.
What is the expected lifetime of the pump diode in the Q-TUNE-G series tunable DPSS laser?
The Q-TUNE-G series is designed with longevity in mind, offering a pump diode lifetime greater than 2 billion shots, ensuring long-term stability and reduced downtime.

Got more questions? Use the inquiry form to ask the supplier directly.
