Description

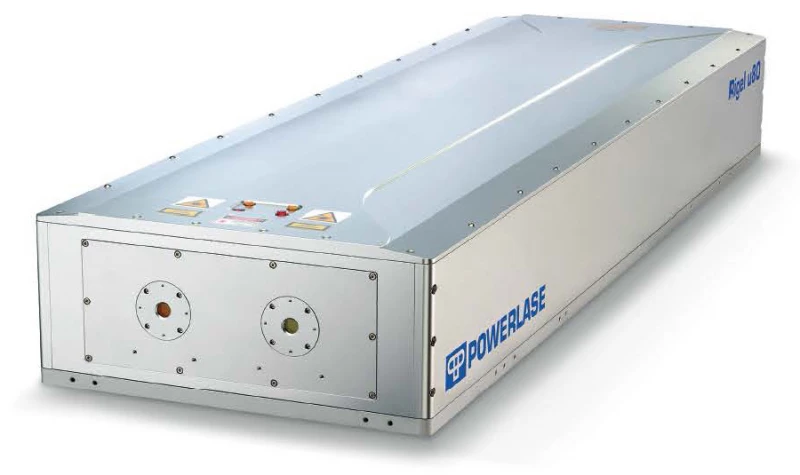

The Rigel u80 from Powerlase Photonics is a state-of-the-art high power, diode-pumped, short pulse UV laser designed to meet the demanding requirements of high-volume industrial applications. This Q-switched, intra-cavity frequency tripled laser delivers impressive average powers of up to 80W, with an unpolarized multi-mode beam at a wavelength of 355 nm. Its robust and proven head design ensures durability and reliability, making it an ideal choice for industries that require consistent and high-performance laser solutions.
Engineered with a sophisticated universal control system architecture, the Rigel u80 offers seamless integration and synchronization with OEM equipment and process lines. This advanced control system, known as the Universal Control System (UCS), includes a system controller, temperature controller, RF driver, and heat exchanger, providing comprehensive management of the laser's operations. This integration facilitates ease of use and enhances the laser's adaptability to various industrial environments.
The Rigel u80 is not only a powerhouse in terms of performance but also excels in maintaining excellent power stability. With its GUI-controlled interface, users can easily manage and adjust the laser settings to suit specific application needs. The combination of high pulse energy and precise control makes it an invaluable asset for processes such as material processing, photovoltaic processing, thin film removal, laser lift-off (LLO), annealing, and surface cleaning. The Rigel u80 represents a pinnacle of laser technology, delivering unmatched performance and reliability for cutting-edge industrial applications.
Rigel u80 High Power UV Laser for Industrial Applications
Specifications |
|
|---|---|
| Avg. Power: | 80 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 5 – 20 kHz |
| Spatial Mode (M^2): | 25 |
| Pulse Duration: | 50 ns |
| Pulse-to-Pulse Stability (RMS): | 1 % |
| Cooling: | Water-to-Water |
| Pulse Energy: | 8 mJ |
| Power Stability: | <2% |
| Supply Voltage: | 3-phase N+E, 220 or 400 VAC (±10%) |
| Supply Frequency: | 50 or 60 Hz |
| Nominal Power Consumption: | 18 kVA |
| Gas Purge: | N2 or Air (Grade N5.0, <1 ppm THC) |
| Laser Dimensions: | 1600 x 500 x 215 mm |
| Control Rack Dimensions: | 1195 x 600 x 970 mm |
| Environmental Conditions: | Temp 15 - 32°C and RH <60% (90% max, non condensing) |
Features
- High Power Output: Delivers up to 80W average power in an unpolarized multi-mode beam at 355 nm wavelength.
- Pulse Energy: Capable of pulse energy up to 8 mJ.
- Pulse Duration: Short pulse duration of 50 ns for precise applications.
- Beam Quality: M2 < 25, ensuring excellent beam quality.
- Power Stability: Exceptional power stability with <2% variation (1σ).
- Advanced Control System: Features a GUI-controlled interface for ease of use.
- Output Options: Offers dual polarized outputs and a single unpolarized output for versatile applications.
- Rugged Design: Proven durable head design suitable for industrial environments.
- Universal Control System: Includes a system controller, temperature controller, RF driver, and heat exchanger for optimal performance.
Applications
- Material Processing
- Photovoltaic Processing
- Thin Film Removal
- Laser Lift Off (LLO)
- Annealing
- Surface Cleaning
Frequently Asked Questions
The Rigel u80 DPSS Ultra Violet UV Laser is a Q-switched, intra-cavity frequency tripled laser that delivers high average powers up to 80 W in an unpolarised multi-mode beam at a wavelength of 355 nm.
The Rigel u80 DPSS Ultra Violet UV Laser is used for material processing, photovoltaic processing, thin film removal, laser lift off (LLO), annealing, and surface cleaning.
The Rigel u80 DPSS Ultra Violet UV Laser has pulse energy up to 8 mJ, M2 <25, excellent power stability, GUI controlled, dual polarised outputs, single unpolarised output, and a well-proven rugged head design.
The Universal Control System (UCS) of the Rigel u80 DPSS Ultra Violet UV Laser includes a system controller, temperature controller, RF driver, and heat exchanger. It is ideally suited to high volume industrial applications.
The facility requirements for the Rigel u80 DPSS Ultra Violet UV Laser include a supply voltage of 3-phase N+E, 220 or 400 VAC (±10%), supply frequency of 50 or 60 Hz, nominal power consumption of 18 kVA, cooling water of 40 litres/min at 11 - 17°C, and gas purge of N2 or Air (Grade N5.0, <1 ppm THC).
