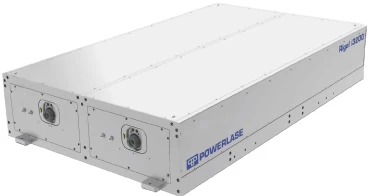

Rigel i3200 High Power Diode Pumped Short Pulse Laser

Specifications

Avg. Power: 3200 W
Wavelength: 1064 nm
Repetition Rate: 5 – 20 kHz
Spatial Mode (M^2): 30
Pulse Duration: 42 ns
Pulse-to-Pulse Stability (RMS): 1 %
Cooling: Water-to-Water
Pulse Energy: 250 mJ
Divergence: 12 mrad
Power Stability: 0.3%
Supply Voltage: 220 or 400 VAC (±10%)
Supply Frequency: 50 or 60 Hz
Nominal Power Consumption: 78 kVA
Laser Dimensions: 1800 x 1080 x 320 mm
Control Rack Dimensions: 1195 x 600 x 970 mm
Environmental Conditions: Temp 15 - 32°C and RH <60% (90% max, non condensing)
Document icon Download Data Sheet Download icon

Features


  • High Power Output: The Rigel i3200 delivers an impressive 3200W of power, making it ideal for demanding industrial applications.

  • Dual Beam, Q-Switched DPSS Laser: Features a dual beam design with Q-switching for enhanced performance.

  • High Peak Power: Operates at a wavelength of 1064 nm, providing high peak power for efficient processing.

  • Pulse Energy: Capable of delivering pulse energy up to 250 mJ.

  • Beam Quality: M2 value of 30 ensures excellent beam quality.

  • Stability: Offers excellent power stability with a 0.3% variation, ensuring consistent performance.

  • Condition Monitoring: Integrated condition monitoring for reliable operation and maintenance.

  • Optional Features: Includes options for fibre delivery (round or square), computer-controlled attenuation, and repetition frequency optimisation.

  • Robust Design: Rugged head design with state-of-the-art control system architecture for easy integration with OEM equipment and process lines.

Applications


  • Material Processing

  • Photovoltaic Processing

  • Thin Film Removal

  • Rapid Laser Patterning

  • Extreme Ultraviolet (EUV) Generation
