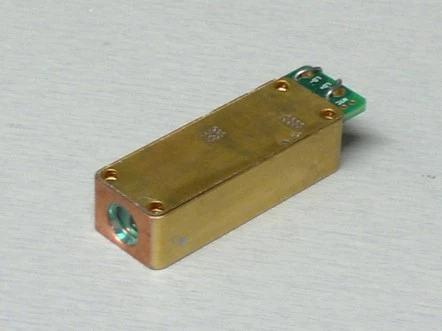

One 100uJ-1030nm: 1030nm Miniature Q-Switched Laser
Description
The One series is a passively q-switched, DPSS nanosecond laser capable of up to 3W of average power, or 100uJ of pulse energy at 1030nm. An ultra-compact, high-peak-power pulsed laser, the One series can be either configured for maximum average power (up to 3W) with a variable repetition rate (up to 30kHz), for applications such as marking and material processing, or configured for operation with an external trigger with a factory set repetition rate up to 10kHz (up to 1W) for instrumentation and measurement applications such as portable LiDAR.
The compact, conductively cooled One series is provided in rugged housing and requires minimal facility requirements, making it a useful tool in a variety of portable and industrial based applications.
One 100uJ-1030nm: 1030nm Miniature Q-Switched Laser
Specifications |
|
|---|---|
| Avg. Power: | 1 W |
| Wavelength: | 1030 nm |
| Repetition Rate: | 0-10kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 10-20 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Air |
Features
- Up to 1W of average power
- Up to 100uJ of pulse energy
- Factory set rep. rate up to 10kHz
- Conductively cooled
Applications
- Portable LiDAR
- Instrumentation and measurement
- Remote Sensing and pollution Monitoring
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The One series laser has a wavelength of 1030nm.
The One series laser can have a maximum average power of up to 3W.
The One series laser can have a maximum pulse energy of 100uJ.
The One series laser can have a maximum repetition rate of up to 30kHz if configured for maximum average power, or up to 10kHz if configured for operation with an external trigger.
The One series laser can be used for portable LiDAR, instrumentation and measurement, remote sensing and pollution monitoring, as well as material processing, marking, and scribing.
