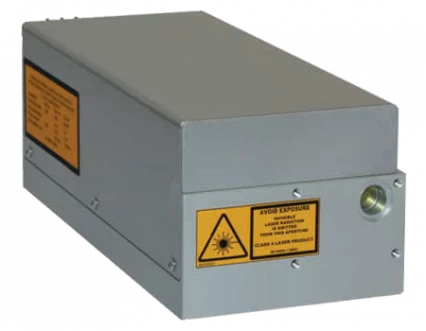

Onda 266: 266nm High Energy Laser
Description
The Onda nanosecond laser series, available with up to 10W at 1064nm and 532nm, was developed as a high-energy seeder for advanced MOPA systems. The Onda is a DPSS ns-laser platform aimed at high-end applications requiring both excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.
Also available at 266nm, 355nm, 532nm and 1064nm, the internal optical layout and accurate temperature management of the Onda series enables high output energies without compromising the lifetime of the THG and FHG stages. Depending on wavelength, the Onda is operational from single shot up to 100 kHz with a pulse duration between 2 and 15 ns.
The Onda series is an OEM laser configuration whose compactness and ease of use allow for a straight-forward integration with superior flexibility and good performance to cost ratio. The Onda is also available with our optional Cbox controller with a proprietary GUI software interface for simplified remote control and monitoring of the laser.
Onda 266: 266nm High Energy Laser
Specifications |
|
|---|---|
| Avg. Power: | 1 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 0-50kHz |
| Spatial Mode (M^2): | 1.5 |
| Pulse Duration: | 6 ns |
| Pulse-to-Pulse Stability (RMS): | - % |
| Cooling: | Air |
Features
- Up to 0.8mJ pulse energy
- @266nm @355nm @532nm @1064nm
- 2 to 10ns pulsewidth
- Single shot to 100kHz
- MOPA configurations
- Monolithic design
- Air cooling
- Low heat waste
Applications
- Specialty marking
- Micromachining of glass
- Electronic manufacturing
- LIDAR and bathymetry
- Thin film removal
- Hole drilling
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Onda 266 laser is used for high-end applications requiring excellent beam quality and high peak power in materials such as metals, glass, plastics, and various delicate and hard materials.
The pulse duration of the Onda 266 laser is between 2 and 15 ns.
The Onda 266 laser is operational from single shot up to 100 kHz.
Yes, the Onda 266 laser is air-cooled.
The weight of the Onda 266 laser is less than 6 kg.
