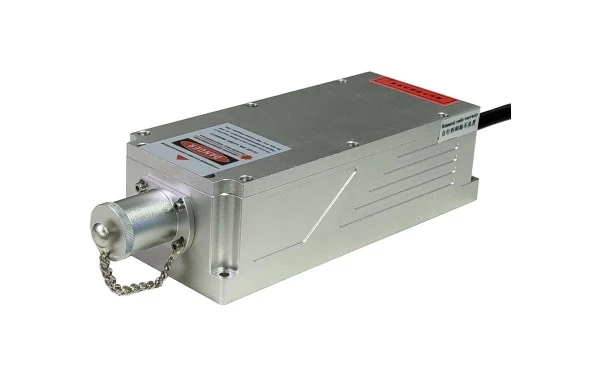

MPL-F-266 266nm DPSS Ultraviolet Laser
Description
The MPL-F Series features all-solid-state UV and infrared lasers known for their ultra-compact design, cost-effectiveness, and ease of operation. These lasers find extensive applications in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiments, and laser fluorescence.
MPL-F-266 266nm DPSS Ultraviolet Laser
Specifications |
|
|---|---|
| Avg. Power: | 10000 W |
| Wavelength: | 266 nm |
| Repetition Rate: | 1-4kHz |
| Spatial Mode (M^2): | <2 |
| Pulse Duration: | 4 ns |
| Pulse-to-Pulse Stability (RMS): | 5 % |
| Cooling: | Conductive |
| Transverse Mode: | Near TEM0 |
| Beam Diameter At The Aperture (mm): | Elliptical (4:1), Beam spot ~1mm |
| Polarization Ratio: | >50:1, Horizontal (Vertical |
| Warm-up Time: | <5 min |
| Beam Height From Base Plate: | 45 mm |
| Operating Temperature: | 10-35 °C |
| Power Supply (90-264VAC): | PSU-H-LED/PSU-H-FDA/PSU-H-OEM |
| Warranty: | 1 year |
Features
- Ultra-compact design
- Cost-effectiveness
- Easy to operate
- Long lifetime
Applications
- UV curing
- Micro-electronics
- CD carving
- Laser medical treatment
- Scientific experiments
- Laser fluorescence
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
External Vendor
Claim PhotonTech Berlin Page to edit and add data
Frequently Asked Questions
The MPL-F-266 laser has a wavelength of 266nm.
The MPL-F-266 laser is used in spectroscopy, industrial and OEM laser optics.
The maximum power of the Standard UV-F-355 laser is 10mW.
The pulse energy range of the MPL-N-355 laser is 0.1 – 15 µJ.
Yes, both fixed or external trigged repetition rates are available for the MPL-W-355 laser.
