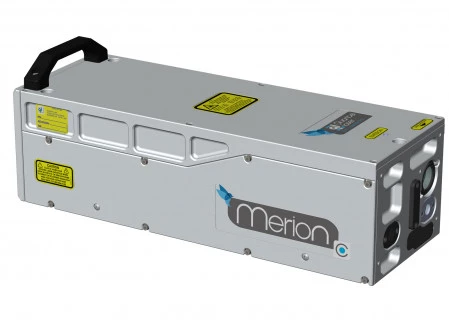

Merion C - Compact diode-pumped pulsed Nd:YAG laser
The Merion C is the newcomer in the Quantel laser diode-pumped nanosecond Nd:YAG range.
This new DPSS laser combines all the advantages of the compact, powerful, reliable and cost-effective lasers you expect from Quantel laser.
The Merion C delivers 100 mJ @ 1064 nm up to 400 Hz and can be equipped with fully integrated harmonic generators, down to 266 nm, to cover a wide range of applications.
All key components such as laser diodes, gain modules and laser driver electronics are internally designed, ensuring full control of the entire process.
It represents the best solution for demanding applications like LiDAR, LIBS or material processing, where customers install the system and operate it remotely with high reliability and confidence.
- Avg. Power: 40 W
- Wavelength: 1064 nm
- Repetition Rate: 0.2 - 0.4 kHz
- Spatial Mode (M^2): NA
- Pulse Duration: < 7 - 10 ns
- Pulse-to-Pulse Stability (RMS): ± 1 (0.5) %
- Cooling: Water-to-Air
· PHOTOACOUSTIC IMAGING
· LASER ULTRASOUND
· WAFER INSPECTION
· LASER PEENING
· DYE, OPO & TI:SA PUMPING
- High power packed in a small footprint
- Excellent shot to shot stability and superior beam profile up to 400 Hz
- Sealed against external contaminants
- Industrial design, built to last
- Easy integration
- Interchangeable power supply
- Diodes warranty: 2 billion shot
- Fiber coupling available at 1064, 532, 1540 nm
