Description
The HLX-G products are based on a solid-state, diode-pumped and passively Q–switched laser. With our proprietary and patented design, our lasers generate single pulse at 532 nm with duration as short as 350ps, repetition rates up to 50 kHz, average power up to 200 mW and energies up to 20 μJ. The extremely reliable and robust microchip design is perfect for advanced OEM industrial and scientific applications. The compact design is best suited for almost any system integration.

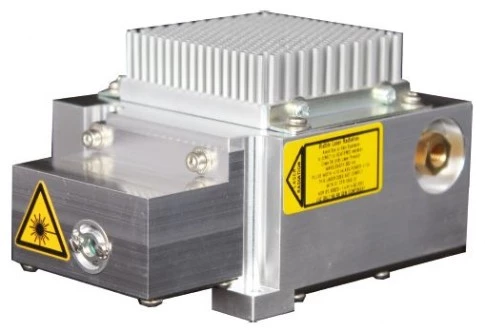

HLX-G DPSS Laser
Specifications
Avg. Power: | 0.2 W |
---|---|
Wavelength: | 532 nm |
Repetition Rate: | 0.001 – 70 kHz |
Spatial Mode (M^2): | 1.2 |
Pulse Duration: | 0.8 ns |
Pulse-to-Pulse Stability (RMS): | 0.5 % |
Cooling: | Air |
Features
Passively Q-Switched
Proprietary and patented Microchip design
Sub-ns pulses (350 ps to 1.2 ns) at 532nm
Pulses without parasite (no second pulse)
Repetition rate up to 50 kHz
Average power up to 200 mW
Peak power up to 20 kW
Externally triggerable
Electronic power supply with analog or numerical control
Proprietary and patented Microchip design
Sub-ns pulses (350 ps to 1.2 ns) at 532nm
Pulses without parasite (no second pulse)
Repetition rate up to 50 kHz
Average power up to 200 mW
Peak power up to 20 kW
Externally triggerable
Electronic power supply with analog or numerical control
Applications
Light Detection and Ranging (LIDAR)
Atmospheric Sciences
Biophotonics
Biohazard detection
MALDI
Microdissection
Laser Induced Fluorescence (LIF)
Laser Induced Breakdown Spectroscopy (LIBS)
RAMAN Spectroscopy
Micromachining
Gemstone marking
Atmospheric Sciences
Biophotonics
Biohazard detection
MALDI
Microdissection
Laser Induced Fluorescence (LIF)
Laser Induced Breakdown Spectroscopy (LIBS)
RAMAN Spectroscopy
Micromachining
Gemstone marking
Frequently Asked Questions
What is the HLX-G DPSS Laser?
The HLX-G DPSS Laser is a solid-state, diode-pumped and passively Q-switched laser that generates a single pulse at 532 nm with duration as short as 350ps, repetition rates up to 50 kHz, average power up to 200 mW and energies up to 20 μJ.
What are the features of the HLX-G DPSS Laser?
The HLX-G DPSS Laser features a passively Q-switched proprietary and patented microchip design, sub-ns pulses (350 ps to 1.2 ns) at 532nm, pulses without parasite (no second pulse), repetition rate up to 50 kHz, average power up to 200 mW, peak power up to 20 kW, externally triggerable, and electronic power supply with analog or numerical control.
What are the applications of the HLX-G DPSS Laser?
The HLX-G DPSS Laser is suitable for a wide range of applications including Light Detection and Ranging (LIDAR), Atmospheric Sciences, Biophotonics, Biohazard detection, MALDI, Microdissection, Laser Induced Fluorescence (LIF), Laser Induced Breakdown Spectroscopy (LIBS), RAMAN Spectroscopy, Micromachining, and Gemstone marking.
What is the wavelength of the HLX-G DPSS Laser?
The HLX-G DPSS Laser has a wavelength of 532nm.
What is the class of the HLX-G DPSS Laser?
The HLX-G DPSS Laser is a Class 3B (III B) Laser Product.
