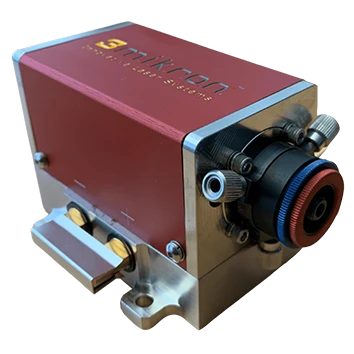

Thumbnail of DPM-50 (Er:YAG) free / fiber photo 1

Description

The world's most powerful diode-pumped Er:YAG laser module is available for industrial and medical applications. The average output power of up to 50 W and repetition rates of up to 1 kHz allows controlled and at the same time precise treatments.

DPM-50 (Er:YAG) free / fiber

Visit the Pantec Biosolutions AG Store

Specifications

Avg. Power: 50 W
Wavelength: 2940 nm
Repetition Rate: Not Specified
Spatial Mode (M^2): 50
Pulse Duration: 40000 ns
Pulse-to-Pulse Stability (RMS): Not Specified
Cooling: Water-to-Water
Pulse Energy: 600 mJ
Free Divergence (half Angle): <50 mrad
Fiber Diameter GeO2: 420 µm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Compact monolithic laser system
  • Highly efficient diode pumping
  • No high-voltage required
  • Reduced waste heat
  • Fiber-coupled versions available
  • Maintenance free
  • Process variability

Applications

Medical:

  • Aesthetics / Dermatology
  • Dentistry
  • ENT
  • Lithotripsy
  • Minimally-Invasive Surgery
  • Orthopedics
  • etc.


Industrial:

  • Material Processing (Drilling, Cutting, Melting, Welding, Evaporation)
  • Analytics
  • Security
  • Defense

Frequently Asked Questions

What is the average output power of the DPM-50 (Er:YAG) laser module?
The average output power of the DPM-50 (Er:YAG) laser module is 50 W.
What are the applications of the DPM-50 (Er:YAG) laser module?
The DPM-50 (Er:YAG) laser module can be used in medical applications such as aesthetics/dermatology, dentistry, ENT, lithotripsy, minimally-invasive surgery, orthopedics, and more. It can also be used in industrial applications such as material processing, analytics, security, and defense.
Does the DPM-50 (Er:YAG) laser module require high-voltage?
No, the DPM-50 (Er:YAG) laser module does not require high-voltage.
Is the DPM-50 (Er:YAG) laser module maintenance-free?
Yes, the DPM-50 (Er:YAG) laser module is maintenance-free.
What is the cooling requirement for the DPM-50 (Er:YAG) laser module?
The DPM-50 (Er:YAG) laser module requires distilled water with Algaecide and Corrosion Inhibitor as a coolant. The recommended coolant temperature is 20 to 25 °C, and the coolant flow rate should be at least 6 lpm.

Got more questions? Use the inquiry form to ask the supplier directly.
