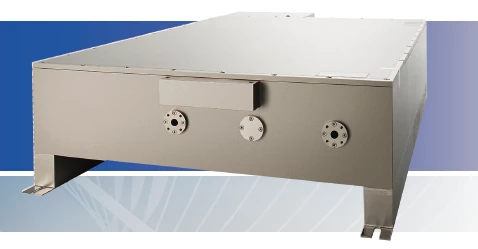

AOPico 355 10-1000 Industrial Picosecond Lasers for Precision Micro-machining and Processing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Description
The **AOPico™ Series** of industrial picosecond lasers from **Advanced Optowave™** represents a breakthrough in laser technology, offering unmatched precision and efficiency for a variety of industrial applications. These diode-pumped solid-state laser solutions are engineered to deliver high-performance results with the lowest cost of ownership in the industry. The series, which includes the PICO-IR-1064, GR-532, and UV-355 models, is designed to cater to the demanding needs of modern manufacturing and processing environments. At the heart of the AOPico™ Series is its exceptional beam quality, boasting an M² value of less than 1.3. This ensures that users benefit from superior precision and control in their applications.
Available in infrared, green, and ultraviolet wavelengths, these lasers offer flexibility and adaptability for diverse industrial tasks. With average power outputs reaching up to 45 watts and pulse durations as short as 7 picoseconds, the AOPico™ Series stands out for its ability to perform high-speed, high-precision micro-machining with remarkable accuracy. The robust and reliable design of these lasers ensures consistent performance even in challenging conditions. They feature a burst mode option, enhancing their versatility for various applications, such as thin-film ablation, medical device manufacturing, polymer processing, and semiconductor wafer scribing.
The AOPico™ Series is also adept at brittle material cutting, drilling, dicing, and sub-surface marking, making it a valuable tool in industries that require meticulous attention to detail and exacting standards. Advanced Optowave™ is committed to continuous product improvement, ensuring that the AOPico™ Series remains at the forefront of laser technology. With compliance to standards such as CDRH, ROHS, and CE, these lasers not only deliver exceptional performance but also adhere to the highest safety and environmental standards. Whether you are involved in semiconductor processing, medical device manufacturing, or any other precision-driven industry, the AOPico™ Series offers the innovative solutions you need to excel.
AOPico 355 10-1000 Industrial Picosecond Lasers for Precision Micro-machining and Processing
Specifications |
|
|---|---|
| Avg. Power: | 10 W |
| Wavelength: | 355 nm |
| Repetition Rate: | 10 – 1000 kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 0.007 ns |
| Pulse-to-Pulse Stability (RMS): | 2 % |
| Cooling: | Water-to-Water |
| Beam Roundness (%): | >85 |
| Beam Diameter (mm): | ~1.0 |
| Beam Diameter (mm): | ~0.6 |
| Beam Diameter (mm): | ~0.5 |
| Beam Divergence (mRad): | <1.3 |
| Point Stability (µrad/ºC): | <50 |
| Polarization Ratio: | 100:1 Linear, Horizontal |
| Polarization Ratio: | 100:1 Linear, Vertical |
| Polarization Ratio: | 100:1 Linear, Horizontal |
| Average Power Stability (% Over 12 Hours): | <3 |
Features
- Industrial Picosecond Lasers: The AOPicoTM Series offers advanced industrial picosecond lasers designed for high-precision applications.
- Advanced OptowaveTM Technology: Utilizes diode-pumped solid-state laser solutions for superior performance.
- Multiple Wavelengths Available: Choose from IR (1064 nm), Green (532 nm), and UV (355 nm) to suit various applications.
- High Average Power: Provides up to 45W average power for demanding tasks.
- Ultra-Short Pulse Durations: Delivers pulse durations of 7 ps for precision work.
- Excellent Beam Quality: Features an M2 < 1.3 for superior beam quality.
- Cost-Effective: Offers the lowest cost of ownership in the industry.
- Highly Reliable Design: Built for durability and consistent performance.
- Burst Mode Option: Includes a burst mode for enhanced flexibility in operations.
- Versatile Applications: Ideal for thin-film ablation, medical device manufacturing, polymer processing/machining, semiconductor processing, wafer scribing, high-speed micro-machining, and brittle material cutting, drilling, dicing, and sub-surface marking.
- Compliance: Meets CDRH, ROHS, and CE standards.
- Compact and Lightweight: Laser head dimensions are 25 x 15 x 7 inches (585 x 381 x 179 mm) and weighs 70 lbs (32 kg).
- Efficient Cooling: Water-cooled system ensures optimal performance.
- Advanced Communication: Features RS-232 communication for easy integration.
- Wide Operational Range: Operates in temperatures from 15 to 30°C and humidity from 20 to 80% non-condensing.
- Flexible Power Requirements: Accepts input voltage from 90 to 260 VAC and line frequency of 50 or 60 Hz.
Applications
- Thin-Film Ablation
- Medical Device Manufacturing
- Polymer Processing/Machining
- Semiconductor/PV Processing/Wafer Scribing
- High-Precision, High-Speed Micro-machining
- Brittle Material Cutting, Drilling, Dicing & Sub-Surface Marking
Frequently Asked Questions
The AOPico 355 10-1000 laser is used for thin-film ablation, medical device manufacturing, polymer processing/machining, semiconductor/PV processing/wafer scribing, high-precision, high-speed micro-machining, brittle material cutting, drilling, dicing & sub-surface marking.
Advanced Optowave Corporation offers a limited warranty for all Femtosecond IR/GR laser systems. For full details on warranty coverage, or for further product information, please contact us.
The AOPico 355 10-1000 laser has an average power of up to 10 watts.
The pulse duration of the AOPico 355 10-1000 laser is 7 picoseconds.
The communication method for the AOPico 355 10-1000 laser is RS-232.
