Description

Introducing the AWAVE Series from Advanced Optowave, a groundbreaking line of industrial lasers that redefine efficiency and performance. Engineered to excel in the most demanding 24/7 production environments, these lasers are a testament to innovation and reliability. The AWAVE Series boasts a compact and lightweight design, ensuring seamless integration into various industrial applications. With a focus on delivering exceptional beam quality, pulse stability, and point stability, these lasers set a new standard in precision and performance.

The AWAVE Series is equipped with innovative end-pumping technology, coupled with air-cooling capabilities that support an average power output of up to 10W. This series features patent-pending harmonic conversion technologies, further enhancing its efficiency and effectiveness. The inclusion of brand-new focusing optics and field-replaceable diodes ensures that maintenance is straightforward and cost-effective, keeping operational costs low while maximizing uptime.

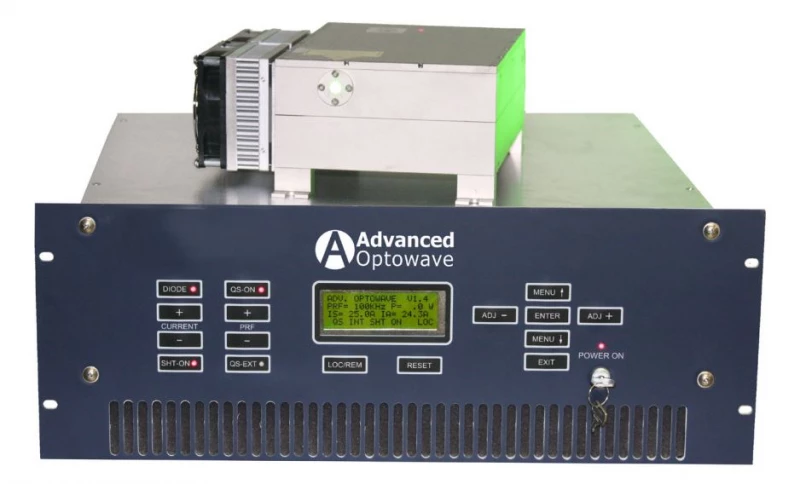

Each AWAVE GR Series model is a Q-switched TEM00 mode laser, designed with a flexible architecture to meet diverse industrial needs. These systems consist of a laser head and a laser controller, connected via a 2.5-meter umbilical cable, with the fiber-coupled pumping diodes conveniently located in the laser controller for easy field replacement. The laser head is sealed in a clean room, ensuring long-term reliability and consistent performance. With pulse frequencies ranging from 1-300 kHz and optional extensions up to 1 MHz, these lasers are versatile and adaptable to various operational requirements.

Advanced Optowave’s commitment to continuous product improvement ensures that the AWAVE Series remains at the forefront of laser technology. The systems are backed by a limited warranty, providing peace of mind and assurance of quality. With a focus on low operational costs and proven 24/7 reliability, the AWAVE Series is an ideal choice for industries seeking high-performance laser solutions. For any laser requirements exceeding standard specifications, Advanced Optowave is ready to provide tailored solutions to meet your specific needs.

AONano 532-30W-50K ND:YV04 GR Laser

Specifications

Avg. Power: 30 W
Wavelength: 532 nm
Repetition Rate: 1 – 300 kHz
Spatial Mode (M^2): 1.2
Pulse Duration: 20 ns
Pulse-to-Pulse Stability (RMS): 2 %
Cooling: Water-to-Air
Average Power: 5W, 10W, 15W
Spatial Mode: TEM00
Beam Roundness: >90%
Pulse Width (ns): <10ns @20kHz, <30ns @100kHz
Pulse Energy (mJ @ 1kHz): >150uJ, >300uJ
Polarization Ratio: >100:1 LINEAR, VERTICAL
Operating Voltage (VAC): 90-260
Line Frequency (Hz): 47-63
Operation Temperature: 15º - 30º C
Storage Temperature: -20º - 50º C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Innovative End-Pumping Technology: Experience enhanced performance with advanced end-pumping technology.
  • Air-Cooling System: Efficient air-cooling supports average power up to 10W, ensuring optimal performance.
  • Excellent Beam Quality: Achieve superior beam quality, pulse stability, and point stability for precision applications.
  • Patent Pending Harmonic Conversion Technologies: Benefit from cutting-edge harmonic conversion technologies for improved efficiency.
  • Ultra-Compact & Light-Weight Design: Easy to handle and integrate into various systems due to its compact and lightweight design.
  • Brand-New Focusing Optics: Enhanced focusing optics for precise laser applications.
  • Field-Replaceable Diode: Simplifies maintenance with easy field-replacement of fiber-coupled pumping diodes.
  • 24/7 Proven Reliability: Engineered for continuous operation in demanding production environments.
  • Low Operational Cost: Designed to minimize operational expenses while maximizing productivity.
  • Q-Switched TEM00 Mode Lasers: Optimized for high-performance with pulse frequencies ranging from 1-300 kHz (optional up to 1 MHz).
  • Flexible Laser Architectures: Customizable laser solutions to meet specific application requirements.
  • Sealed Laser Head: Ensures long-term reliability with a clean room sealed laser head.

Applications

  • Precision Micromachining: Ideal for high-accuracy material processing.
  • Electronics Marking: Suitable for fine marking of semiconductor and PCB components.
  • Medical Device Manufacturing: Supports precision cutting and drilling tasks.
  • Solar Cell Scribing: Enables efficient and accurate scribing processes.
  • Scientific Research: Provides stable, high-quality output for advanced experiments.

Frequently Asked Questions

What is the AWAVE GR Series laser used for?
The AWAVE GR Series laser is used for cutting, drilling, welding, microscopic imaging, inspection, biomedical, holographic, spectroscopic, and other applications.
What is the pulse frequency range of the AWAVE GR Series laser?
The pulse frequency range of the AWAVE GR Series laser is 1-300 kHz (300 kHz to 1 MHz is optional).
What is the average power range of the AWAVE GR Series laser?
The average power range of the AWAVE GR Series laser is from 10mW to 30W.
What is the pulse energy of the AWAVE GR Series laser?
The pulse energy of the AWAVE GR Series laser is in excess of 10mJ.
Can the AWAVE GR laser be customized beyond standard specifications?
Yes, the AWAVE GR laser can be designed and engineered with flexible laser architectures to meet any laser requirements exceeding standard specifications. Contact Advanced Optowave for more information.

Got more questions? Use the inquiry form to ask the supplier directly.
