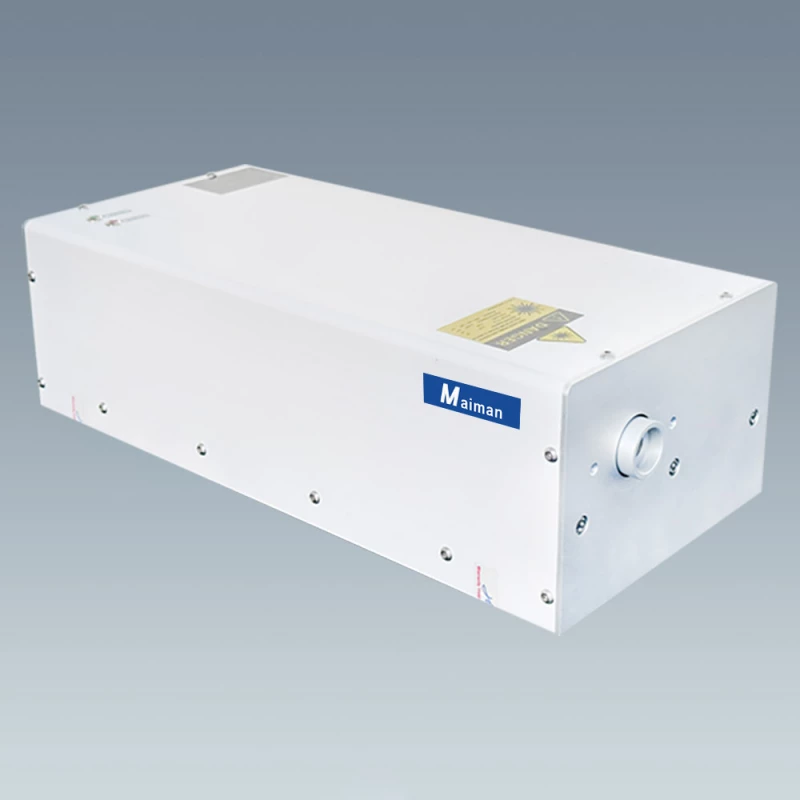

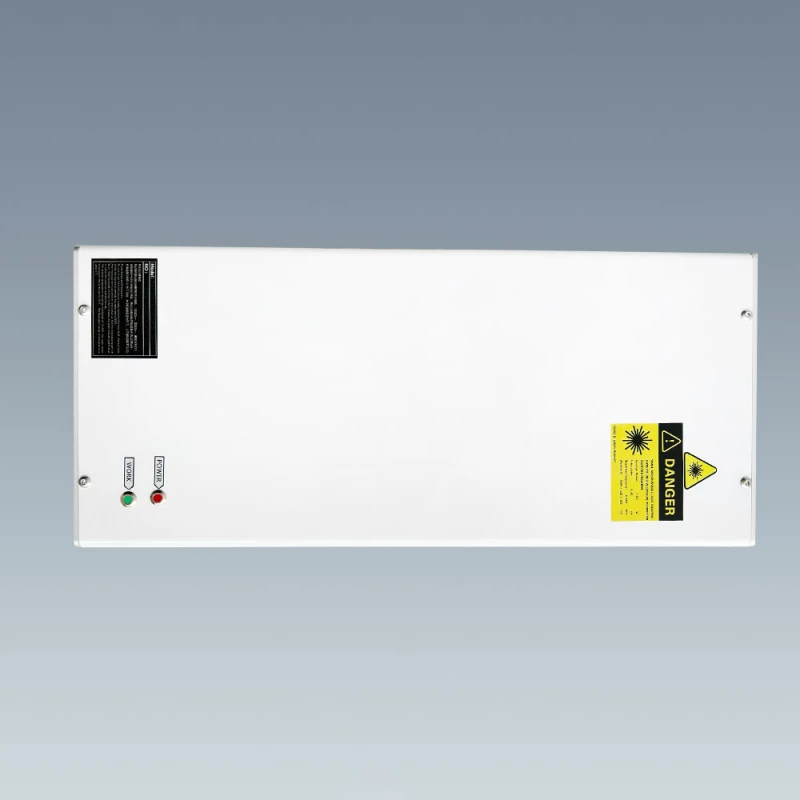

Maiman Laser 532nm 20W End Pumped Green Laser Source MMEPG-532-20-HE-D30
Description
Maiman Laser 532nm 20W End Pumped Green Laser Source is an end pumped solid-state laser source designed for diamond cutting and super hard material cutting, especialy for coring and slicing of big size CVD diamond.
It has been verified by some well-known global top manufacturers of diamond cutting machine to have excellent performance in large-size CVD diamonds and natural diamonds - perfectly smooth cutting surface, smaller opening and high-speed cutting efficiency. There is no doubt that it is the laser source of choice for cutting-edge diamond cutting machines.
It's a cutting edge inovative pulsed green laser, higher peak power of the laser enables greater processing capability and efficiency, particularly in cutting ultra-hard materials, like SiC and diamond.
The laser system is highly integrated, incorporating the laser, power supply, Q-switching control, and protection circuits into a compact and easy-to-install unit, zero maintenance.
The internal resonator cavity is equipped with a self-cleaning system and stable cavity design, addressing power attenuation issues and ensuring an extended lifespan.
For more details, click Maiman Laser 532nm End Pumped Green Laser
Maiman Laser 532nm 20W End Pumped Green Laser Source MMEPG-532-20-HE-D30
Specifications |
|
|---|---|
| Avg. Power: | 20 W |
| Wavelength: | 532 nm |
| Repetition Rate: | 7-100kHz |
| Spatial Mode (M^2): | 1.3 |
| Pulse Duration: | 30 ns |
| Pulse-to-Pulse Stability (RMS): | 3 % |

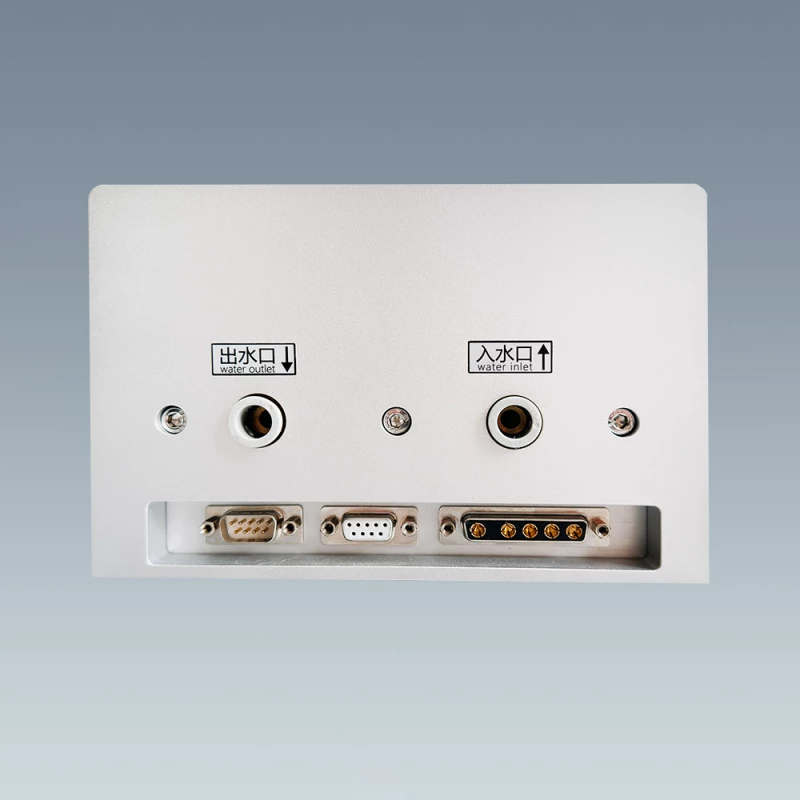

| Cooling: | Water-to-Water |
| Single Pulse Energy (uJ): | 2000 uJ@10kHz |
| Pulse Stability: | <3% rms |
| Long Term Stability: | <±3% |
| Polarization Ratio: | Vertical；>100:1 |

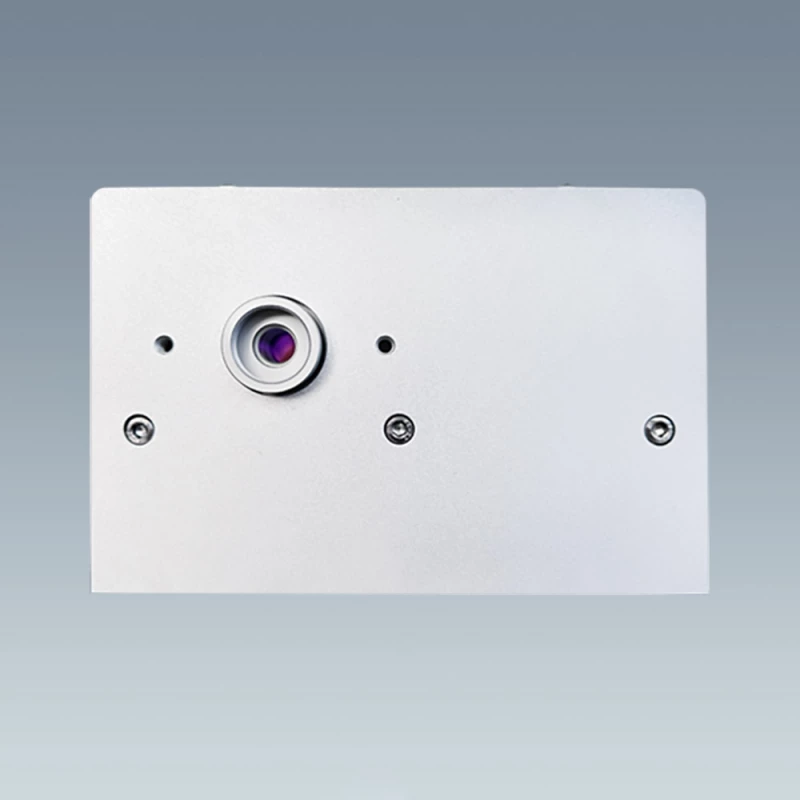

| Beam Diameter: | ～0.9mm(at exit) |
Features
- Single pulse energy>2mj
- Superior beam quality M²<1.3
- UItra-long service life and power stability
- All-in-one laser design, compact size
Applications
- CVD diamond slicing & coring
- Carbon fiber cutting
- SiC wafer dicing
- Super hard material cutting -PcBN, PCD,SCD and CVD diamond, SiC, etc.
- Drilling in brittle materials
- Laser trimming
