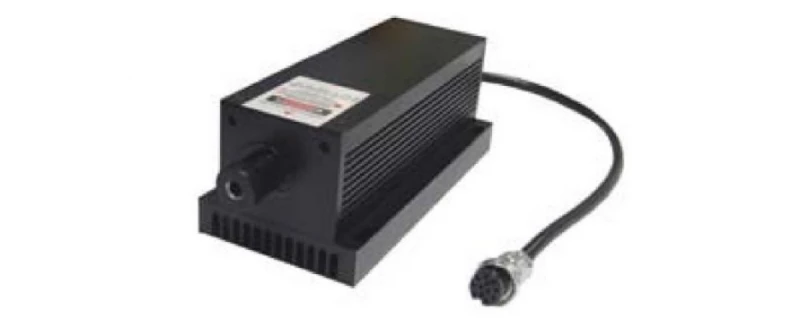

FPYL-515-XXXT Green DPSS Laser

Visit the Frankfurt Laser Company Store

Specifications

Wavelength: 515 nm
Max Output Power: 100 mW
Cooling Method: Air-Cooled
Tunability: Fixed Wavelength
Control Interface: Other (not specified)
Transverse Mode: Near TEM00
Power Stability (RMS, Over 4 Hours): <10 %
Warm-up Time: <10 minutes
M² Factor: <2.0
Beam Divergence (full Angle): <2.0 mrad
Beam Diameter At The Aperture (1/e²): ~3.0 mm
Beam Height From Base Plate: 45 mm
Polarization Ratio: >100:1
Pointing Stability After Warm-up: <0.05
Expected Lifetime: 10000 hours
Operating Temperature: 10-35 °C
Document icon Download Data Sheet Download icon

Features


  • Wavelength: 515±1 nm

  • Output Power Range: 1-100 mW

  • Transverse Mode: Near TEM00

  • Operating Mode: CW

  • Power Stability: <10% (RMS, over 4 hours)

  • Warm-up Time: <10 minutes

  • M² Factor: <2.0

  • Beam Divergence (full angle): <2.0 mrad

  • Beam Diameter at the Aperture (1/e²): ~3.0 mm

  • Beam Height from Base Plate: 45 mm

  • Polarization Ratio: >100:1

  • Pointing Stability after Warm-up: <0.05

  • Expected Lifetime: 10,000 hours

  • Operating Temperature: 10-35°C

Applications


  • Laser displays and shows

  • Biomedical imaging

  • Confocal microscopy

  • Flow cytometry

  • Fluorescence spectroscopy

  • Laser alignment

  • Holography

  • Optical pumping

  • Laser-induced fluorescence

  • Laser scanning
