Description

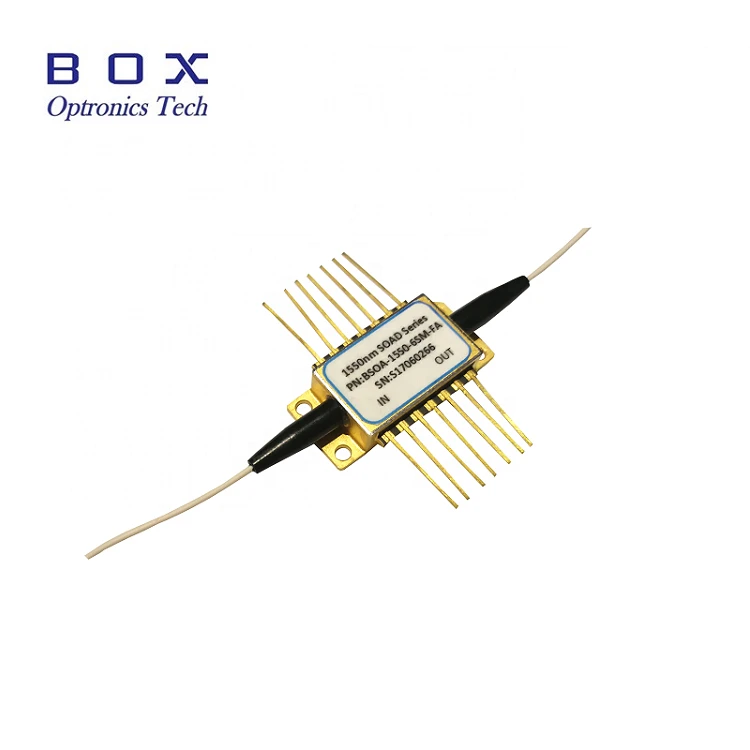

The BOX Optronics 1550 nm SOA Optical Amplifier Module is a high-gain, low-noise semiconductor optical amplifier designed for C-band signal boosting in fiber optic networks.

Offering >25 dB small-signal gain across a >100 nm bandwidth, it supports loss compensation in WDM systems, MOPA setups, and 40G/100G links.

The module features low polarization dependence, ≤9 dB noise figure, and saturation output up to 15 dBm.

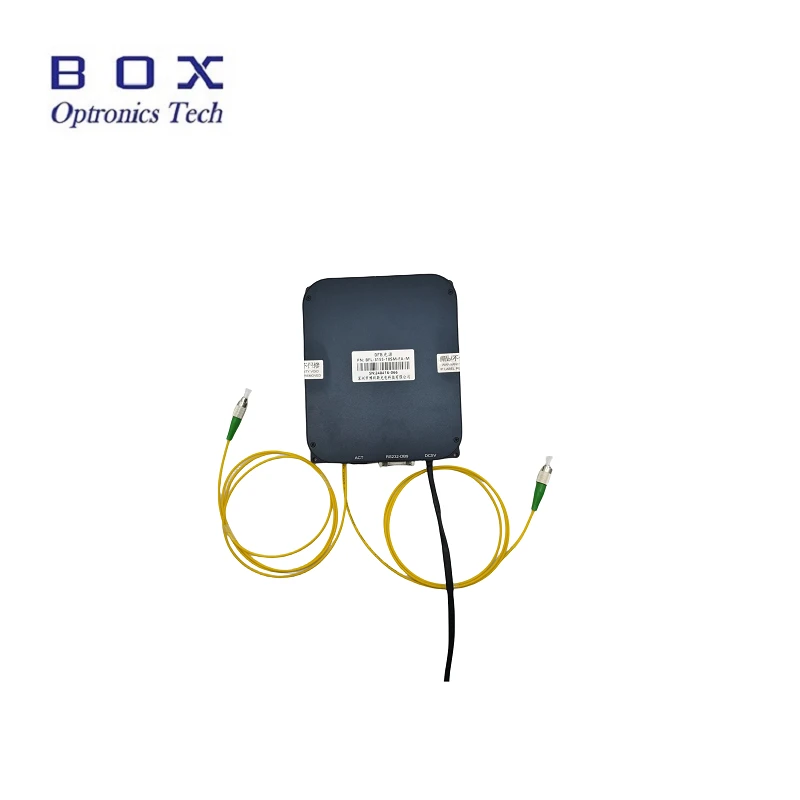

Available in SMF-28 or PM1550 fiber with FC/APC connectors, it operates on 5V DC (<15W) and fits a compact 150×125×20 mm module, ideal for integration in harsh environments (-5°C to +55°C).

1550nm 25dB SOA Optical Amplifier Module

Shenzhen Box Optronics Technology Co.,Ltd.

Specifications
Operating Wavelength:	1550 nm
3dB Optical Bandwidth:	100 dB
Saturation Output Power:	15 dB
Small Signal Gain:	<25 dB
Noise Figure:	≤9 dB
Connector:	FC/AP
Fiber Type:	SMF-28/PM1550

Download Data Sheet

Features

40G and 100G C-Band blocking shutter or modulation;

Low Noise Figure & Low polarization dependence;

Module or Benchtop package.

Applications

Loss compensation for fiber optical connection and switch;

WDM fiber optical networks;

MOPA (Master Oscillator Power Amplifier) laser.
