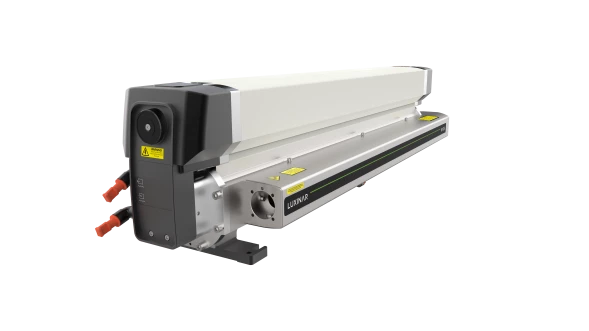

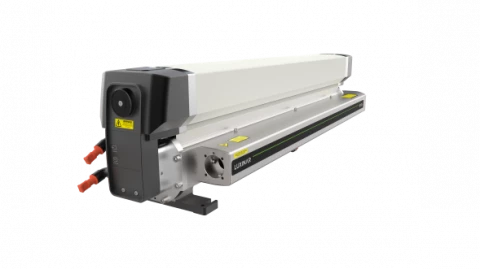

SR 15x 9.3um CO₂ Laser

Specifications

Gas Medium: CO2
Wavelength: 9.3 um
Output Power: 150 W
Mode Quality (M^2): <1.2
Beam Diameter: 6 mm
Beam Divergence (Full Angle): 2 mrad
Polarization: Linear
Cooling: Water-to-Water
Document icon Download Data Sheet Download icon

Features

SR 15x 9.3µm – 150W sealed CO₂ laser source



The SR 15x 9.3µm, with up to 150W average output power and 335W peak output power, offers fast processing capabilities and high-quality results.



  • IP66 rating

  • Wavelength 9.3µm

  • Integrated and field replaceable RF power supplies

  • Compact, lightweight laser source

  • Simple diagnostics

  • Minimum shipment power 20% higher than rated power


The SR series is designed with an integrated RF power supply and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray.

Applications


  • Cutting

  • Drilling

  • Marking

  • Engraving

  • Scribing

  • Perforating

  • Welding

  • Kiss Cutting
