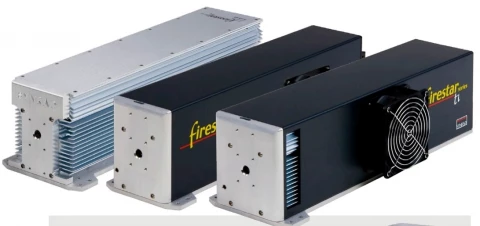

ti Series

Name: ti Series
Brand: Novanta Photonics
Availability: InStock

Description

Experience unmatched performance and precision with the ti Series CO2 lasers, meticulously engineered to meet the demands of modern industrial applications. Synrad, a pioneer in laser technology, proudly presents the ti Series, setting a new standard in high-performance laser systems.

At the heart of the ti Series lies cutting-edge engineering, delivering higher average power across three wavelength options: 9.3 μm, 10.2 μm, and 10.6 μm. This groundbreaking design ensures faster processing speeds, higher resolution, and a compact size that seamlessly integrates into OEM setups, providing unparalleled flexibility and efficiency.

The ti Series is the culmination of Synrad's relentless pursuit of excellence, offering maximum power and performance from an air-cooled CO2 laser. Its patented hybrid-unstable resonator design creates a compact laser with exceptional beam quality, focused to the smallest achievable spot size. This translates into superior power density on the work surface, enabling precise and efficient laser processing.

Designed to meet the diverse needs of industrial applications, the ti Series boasts high-performance RF circuitry tailored to its compact resonator, delivering fast rise times with outstanding square-wave performance. Whether it's high power, fast pulsing capabilities, or exceptional optical quality, the ti Series is ideally suited for applications requiring rapid scanning or pulsing of the laser beam.

Specifications

Gas Medium:	CO2
Wavelength:	9.3 um
Output Power:	60 W
Mode Quality (M^2):	<1.2
Beam Diameter:	2 mm
Beam Divergence (Full Angle):	7 mrad
Polarization:	Linear
Cooling:	Water-to-Water, Air
Power Stability:	± 7 %
Ellipticity:	< 1.2
Rise Time:	< 75 μs
Operating Frequency:	0.160 kHz
DC Voltage Input:	48 VDC
Maximum Current:	18-35 A
Maximum Heat Load:	900-1700 W
Operating Ambient Temperatures:	15-40 °C
Maximum Humidity:	95 %

Download Data Sheet

Features

Higher than average power rating across 9.3 μm, 10.2 μm, and 10.6 μm wavelength options
Efficient laser energy delivery with fast rise/fall times
Compact footprint across 60, 80, and 100 Watt models
Consistent beam exit height across all ti Series lasers for easier power upgrades
Multiple cooling options: fan or water-cooled models
Pulse model available for heat-sensitive materials with 100 Watts average power and more than 300 Watts peak power
High stability models with excellent power stability better than ±2%
Unique 100 Watt fan-cooled model offers an economical option for OEMs and system architects

Applications

High-speed marking, cutting, and additive manufacturing
Permanent coding and marking on packaging materials
Processing brittle materials such as alumina, ceramic, and quartz glass
3D printing equipment OEMs
Precise cutting and engraving applications
Sensitive marking applications like denim

Add to Watchlist (My Watchlist)

Ships from:

United States

Sold by:

Novanta Photonics

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the ti Series CO2 laser known for?

The ti Series CO2 lasers are renowned for their unmatched performance and precision in modern industrial applications. Developed by Synrad, a pioneer in laser technology, the ti Series sets a new standard in high-performance laser systems, delivering maximum power and efficiency.

What are the key features of the ti Series?

The ti Series offers higher than average power ratings across three wavelength options (9.3 μm, 10.2 μm, and 10.6 μm), efficient laser energy delivery with fast rise/fall times, and a compact footprint available in 60, 80, and 100 Watt models. It also ensures consistent beam exit height for easier power upgrades and provides multiple cooling options, including fan or water-cooled models.

What applications are suitable for the ti Series CO2 lasers?

The ti Series CO2 lasers are ideal for a wide range of industrial applications, including high-speed marking, cutting, and additive manufacturing, permanent coding and marking on packaging materials, processing brittle materials like alumina, ceramic, and quartz glass, 3D printing equipment OEMs, and precise cutting and engraving applications.

What makes the ti Series CO2 lasers stand out from others?

The ti Series stands out due to its patented hybrid-unstable resonator design, which creates a compact laser with exceptional beam quality, focused to the smallest achievable spot size. This design ensures superior power density on the work surface, enabling precise and efficient laser processing.

Are there different models available within the ti Series?

Yes, the ti Series offers various models tailored to different needs. There are high stability models with excellent power stability better than ±2%, as well as a unique 100 Watt fan-cooled model, which offers an economical option for OEMs and system architects. Additionally, a pulse model is available for heat-sensitive materials with 100 Watts average power and more than 300 Watts peak power.
