SR 10x 9.3µm CO₂ Laser

Visit the Luxinar Ltd Store

Specifications

Gas Medium: CO2
Wavelength: 9.3 um
Output Power: 105 W
Mode Quality (M^2): <1.2
Beam Diameter: 6 mm
Beam Divergence (Full Angle): 2 mrad
Polarization: Linear
Cooling: Water-to-Water
Document icon Download Data Sheet Download icon

Features

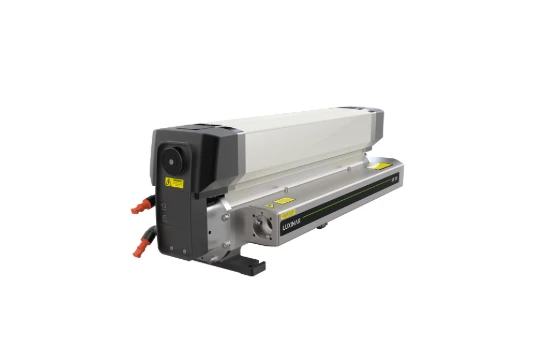

SR 10x – 105W sealed CO₂ laser source


With up to 105W average output power and 235W peak output power, offers fast processing capabilities and high-quality results.



  • IP66 rating

  • Wavelength 9.3µm

  • Integrated and field replaceable RF power supplies

  • Compact, lightweight laser source

  • Simple diagnostics

  • Minimum shipment power 20% higher than rated power


Like all of the SR series lasers, the SR 10x has an integrated RF power supply design and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO₂ laser sources.

Applications


  • Cutting

  • Drilling

  • Marking

  • Engraving

  • Scribing

  • Perforating

  • Welding

  • Kiss Cutting
