SR 25 AOM 9.3um CO2 Laser

Luxinar Ltd
REQUEST QUOTE

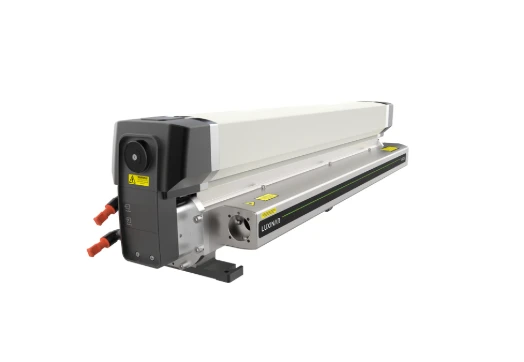

SR 25 AOM 9.3um CO2 Laser

OVERVIEW

Due to its precise pulse control, the SR AOM series is ideal for a variety of high-precision processes such as microfilm cutting in the flat panel display market and scribing, engraving, marking and surface patterning applications that need less heat affected zone (HAZ).  Other thin film applications, including those in the automotive, electronics, lighting and flexible packaging industries, can benefit from the higher quality cutting edge which the SR AOM offers when compared to standard pulsed CO2 lasers.

SPECIFICATION

  • Gas Medium: CO2
  • Wavelength: 9.3 um
  • Output Power: 150 W
  • Mode Quality (M^2): <1.2
  • Beam Diameter: 7.7 ± 0.5 mm
  • Beam Divergence (Full Angle): < 2 mrad
  • Polarization: Linear
  • Cooling: Water-to-Water
Download Data Sheet

Applications


  • Film cutting in FPD (flat panel display)

  • Polarizing film cutting

  • BLU (backlight unit) patterning

  • Multilayer thin film scribing/cutting

  • High-speed/resolution printing

KEY FEATURES

SR AOM series – 150W sealed CO2 laser source with integrated acousto-optic modulator (AOM)



  • Optical pulse rise/fall time < 1μs for high-precision processing, energy control and reduced HAZ

  • Integrated, detachable and field replaceable RF power supply for ease of installation and servicing
