Description

Our SR series CO₂ laser sources, SR 08s, SR 10e, SR 10i, SR 10x, SR 15e, SR 15i, SR 15s, SR 15x, SR 25i and SR 25x, are all IP66 rated to ensure a high level of protection against water and dust ingress. This, together with the reliability that our customers have come to expect from Luxinar, guarantees a watertight laser technology.

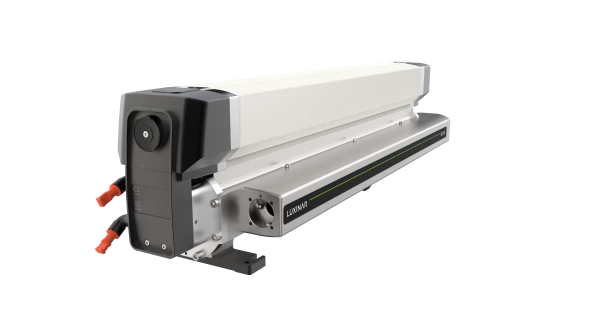

SR 15i CO₂ Laser

Visit the Luxinar Ltd Store

Specifications

Gas Medium: CO2
Wavelength: 9.3 um
Output Power: 130 W
Mode Quality (M^2): <1.2
Beam Diameter: 6 mm
Beam Divergence (Full Angle): 2 mrad
Polarization: Linear
Cooling: Water-to-Water

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

SR 15i – 175W sealed CO₂ laser source

The SR 15i offers up to 175W output power, along with the following key features:

  • IP66 rating
  • Wavelengths 10.6µm, 10.25µm, 9.3µm
  • Integrated and field replaceable RF power supplies
  • Compact, lightweight laser source
  • Simple diagnostics
  • Minimum shipment power 20% higher than rated power

The middle laser of the SR series, the SR 15i is designed with an integrated RF power supply and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO₂ laser sources.

Applications

  • Cutting
  • Drilling
  • Marking
  • Engraving
  • Scribing
  • Perforating
  • Welding
  • Kiss Cutting

Frequently Asked Questions

What applications is the SR 15i CO₂ laser source suitable for?
The SR 15i CO₂ laser source is suitable for cutting, drilling, marking, engraving, scribing, perforating, welding, and kiss cutting.
What is the IP rating of the SR series CO₂ laser sources?
The SR series CO₂ laser sources, including the SR 15i, are all IP66 rated to ensure a high level of protection against water and dust ingress.
What is the minimum shipment power of the SR 15i CO₂ laser source?
The minimum shipment power of the SR 15i CO₂ laser source is 20% higher than the rated power, which is 156-210W.
What is the output power of the SR 15i CO₂ laser source?
The SR 15i CO₂ laser source offers up to 130-175W output power.
What is the wavelength of the SR 15i CO₂ laser source?
The SR 15i CO₂ laser source has wavelengths of 10.6µm, 10.25µm, and 9.3µm.

Got more questions? Use the inquiry form to ask the supplier directly.
