  5. OEM 65iX 10.6um CO2 Laser

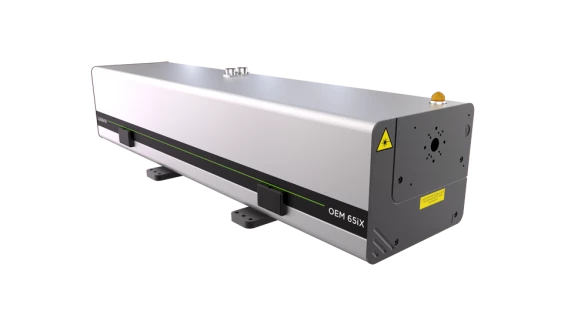

OEM 65iX 10.6um CO2 Laser

Luxinar Ltd
REQUEST QUOTE
OEM 65iX 10.6um CO2 Laser

OVERVIEW

The OEM series of sealed CO2 laser sources, comprising OEM 45iX, OEM 65iX and OEM 100iX, can operate over a wide range of pulse widths and frequencies including safe operation through the acoustic regions and over a broad range of coolant temperatures.  A compact solution that can be easily integrated into industrial processing production lines, the OEM series can be sited in confined spaces in any orientation both with or without covers.

SPECIFICATION

  • Gas Medium: CO2
  • Wavelength: 10.6 um
  • Output Power: 650 W
  • Mode Quality (M^2): <1.2
  • Beam Diameter: 11.6 ± 1.0 mm
  • Beam Divergence (Full Angle): < 1.75 mrad
  • Polarization: Linear
  • Cooling: Water-to-Water
Download Data Sheet

Applications


  • Cutting

  • Drilling

  • Marking

  • Engraving

  • Scribing

  • Perforating

  • Welding

  • Kiss Cutting

KEY FEATURES

OEM 65iX - 650W sealed CO2 laser source


Power output up to 650W



  • IP56 rating

  • Wavelengths 10.6µm and 10.25µm

  • Short optical pulse with high peak power or quasi-CW output

  • Minimum shipment power 20% higher than rated power



The OEM series of CO2 lasers represents a compact solution that can be easily integrated into industrial processing production lines. The separate RF power supply allows flexible integration, and enables the laser to produce short optical pulses with high peak power or quasi-CW output. There is also the option for an absorbing thin film reflector (ATFR) to prevent back reflection issues.


The OEM series lasers use a single resonator design producing laser light with a linear polarisation. With a beam quality of K > 0.8, power and precision are defining characteristics of these lasers. Since many equipment manufacturers purchase this range to integrate into their equipment, these OEM iX laser sources are available without the laser housing, if desired.
