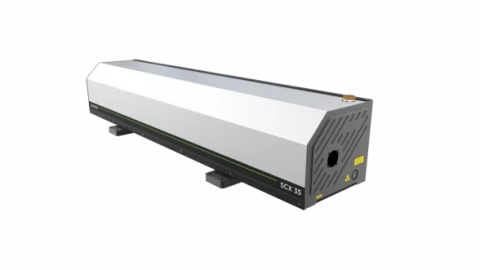

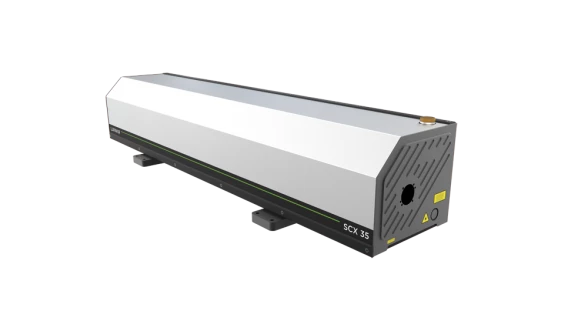

SCX 35 10.6um CO2 Laser

Luxinar Ltd
REQUEST QUOTE
SCX 35 10.6um CO2 Laser

OVERVIEW

The SCX 35 laser source, with an output power of up to 350W, is designed for integration into industrial processing systems and is often used for cutting applications such as plastics and wood. It includes a separate RF power supply which enables the laser to produce short optical pulses with high peak power or quasi-CW output. Due to its lightweight and robust design, this CO2laser is ideal for robotic applications and can be integrated exceptionally well into systems with scanners or other beam guidance components.

SPECIFICATION

  • Gas Medium: CO2
  • Wavelength: 10.6 um
  • Output Power: 350 W
  • Mode Quality (M^2): <1.2
  • Beam Diameter: 7 ± 0.5 mm
  • Beam Divergence (Full Angle): 2 mrad
  • Polarization: Linear
  • Cooling: Water-to-Air
Download Data Sheet

Applications


  • Cutting

  • Drilling

  • Marking

  • Engraving

  • Scribing

  • Perforating

  • Welding

  • Kiss Cutting

KEY FEATURES

SCX 35 – 350W sealed CO₂ laser source
Power range of 20-350W



  • IP56 rating

  • Wavelengths 10.6µm and 10.25µm

  • Separate RF power supplies for flexible integration

  • Minimum shipment power 20% higher than rated power
