Description
Due to its precise pulse control, the SR AOM series is ideal for a variety of high-precision processes such as microfilm cutting in the flat panel display market and scribing, engraving, marking and surface patterning applications that need less heat affected zone (HAZ). Other thin film applications, including those in the automotive, electronics, lighting and flexible packaging industries, can benefit from the higher quality cutting edge which the SR AOM offers when compared to standard pulsed CO₂ lasers.

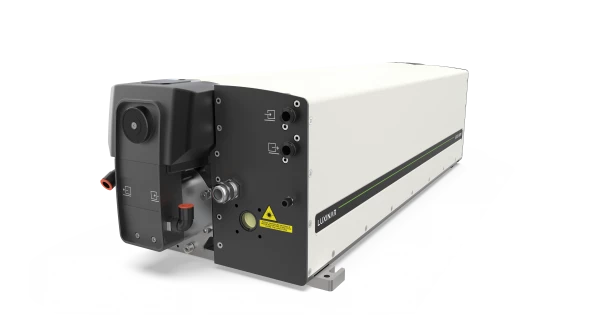

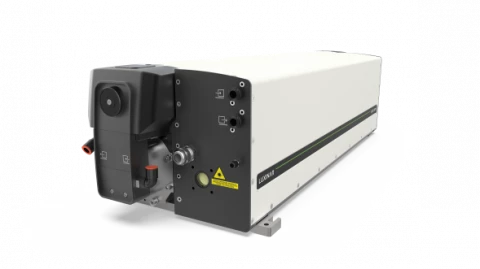

SR AOM 9.3um CO₂ Laser Series
Specifications
Gas Medium: | CO2 |
---|---|
Wavelength: | 9.3 um |
Output Power: | 75 W |
Mode Quality (M^2): | <1.2 |
Beam Diameter: | 5.6 mm |
Beam Divergence (Full Angle): | 3 mrad |
Polarization: | Linear |
Cooling: | Water-to-Water |
Features
SR AOM series – 75W sealed CO₂ laser source with integrated acousto-optic modulator (AOM)
- Optical pulse rise/fall time < 1μs for high-precision processing, energy control and reduced HAZ
- Integrated, detachable and field replaceable RF power supply for ease of installation and servicing
Applications
- Film cutting in FPD (flat panel display)
- Polarizing film cutting
- BLU (backlight unit) patterning
- Multilayer thin film scribing/cutting
- High-speed/resolution printing
Frequently Asked Questions
What are the applications of the SR AOM series CO₂ laser?
The applications of the SR AOM series CO₂ laser include film cutting in FPD (flat panel display), polarizing film cutting, BLU (backlight unit) patterning, multilayer thin film scribing/cutting, and high-speed/resolution printing.
What are the features of the SR AOM series CO2₂laser?
The SR AOM series CO₂ laser features a 75W and 150W sealed CO₂ laser source with integrated acousto-optic modulator (AOM), optical pulse rise/fall time < 1μs for high-precision processing, energy control and reduced HAZ, and an integrated, detachable and field replaceable RF power supply for ease of installation and servicing.
What is the maximum output power of the SR 10 AOM 9.3um and SR 25 AOM 9.3um CO₂ laser?
The maximum output power of the SR 10 AOM 9.3um CO₂ laser is 75W and SR 25 AOM 9.3um CO₂ laser is 150W.
What is the SR AOM series CO₂ laser used for?
The SR AOM series CO₂ laser is ideal for high-precision processes such as microfilm cutting, scribing, engraving, marking, and surface patterning applications that need less heat affected zone (HAZ).
What is the wavelength of the SR AOM CO₂ laser Series?
The wavelength of the SR AOM CO₂ laser Series is 9.3µm.
