SR 15e CO₂ Laser

Specifications

Gas Medium: CO2
Wavelength: 9.3 um
Output Power: 160 W
Mode Quality (M^2): <1.2
Beam Diameter: 6.3 mm
Beam Divergence (Full Angle): 2 mrad
Polarization: Linear
Cooling: Water-to-Water
Document icon Download Data Sheet Download icon

Features

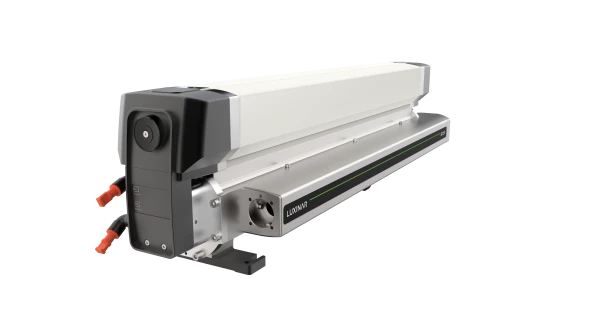

SR 15e – 160W sealed CO₂ laser source


The SR 15e offers up to 160W output power, along with the following key features:



  • IP66 rating

  • Wavelengths 9.3µm

  • Integrated and field replaceable RF power supplies

  • Compact, lightweight laser source

  • Simple diagnostics

  • Minimum shipment power 20% higher than rated power


The middle laser of the SR series, the SR 15e is designed with an integrated RF power supply and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO₂ laser sources.

Applications


  • Cutting

  • Drilling

  • Marking

  • Engraving

  • Scribing

  • Perforating

  • Welding

  • Kiss Cutting
