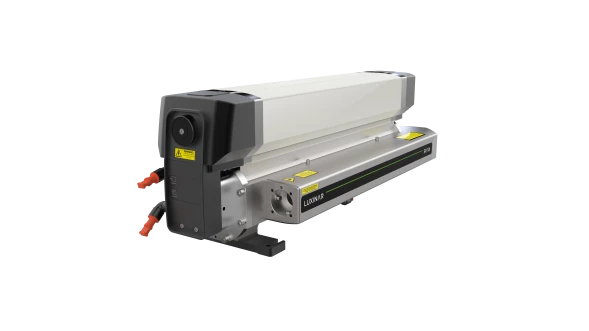

SR e 9.3um CO₂ Laser Series

Name: SR e 9.3um CO₂ Laser Series
Brand: Luxinar Ltd
Availability: InStock

Description

The SR e 9.3µm series specifically targets the electronics industry, where high peak power and low HAZ are required. Processing polarising film, removing excess bonding agent, and laser texturing, to mention a few, require perfect edge quality and minimum disruption of the surrounding area.

Specifications

Gas Medium:	CO2
Wavelength:	9.3 um
Output Power:	115 W
Mode Quality (M^2):	<1.2
Beam Diameter:	6 mm
Beam Divergence (Full Angle):	2 mrad
Polarization:	Linear
Cooling:	Water-to-Water

Download Data Sheet

Features

SR 10e – 115W average output power & 330W peak output power

SR 15e – 160W average output power & 460W peak output power

IP66 rating
Wavelength 9.3µm
Integrated and field replaceable RF power supplies
Compact, lightweight laser source
Simple diagnostics
Minimum shipment power 20% higher than rated power

Like all of the SR series lasers, the SR e series are designed with an integrated RF power supply and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO₂ laser sources.

Applications

Cutting
Drilling
Marking
Engraving
Scribing
Perforating
Welding
Kiss Cutting

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Luxinar Ltd

On FindLight:

since 2019

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are some of the applications of the SR e CO₂ laser source series?

The SR e CO₂ laser source series can be used for cutting, drilling, marking, engraving, scribing, perforating, welding, and kiss cutting.

What is the cooling requirement for the SR e CO₂ laser source series?

The SR e CO₂ laser source series require a minimum flow rate of 4L/min and a recommended flow rate of 5L/min, with a refrigeration capacity of over 2.6kW and an ambient temperature range of 5 – 40°C.

What is the IP rating of the SR series CO₂ laser sources?

The SR series CO₂ laser sources, including the SR e series, are all IP66 rated to ensure a high level of protection against water and dust ingress.

What is the power range of the SR e CO₂ laser source series?

The SR 10e CO₂ laser source offers power up to 115W and 160W for SR 15e CO₂ laser source, with a minimum shipment power 20% higher than rated power.

What is the wavelength range of the SR e CO₂ laser source series?

The SR e CO₂ laser source series have wavelengths of 9.3µm.
