SR 08s 10.6um CO2 Laser
OVERVIEW
Our SR series CO2 laser sources, SR 08s, SR 10i, SR 15i, SR 15s and SR 25i, are all IP66 rated to ensure a high level of protection against water and dust ingress. This, together with the reliability that our customers have come to expect from Luxinar, guarantees a watertight laser technology.
SPECIFICATION
- Gas Medium: CO2
- Wavelength: 10.6 um
- Output Power: 80 W
- Mode Quality (M^2): <1.2
- Beam Diameter: 6 ± 0.5 mm
- Beam Divergence (Full Angle): < 2 mrad
- Polarization: Linear
- Cooling: Water-to-Water
Applications
- Cutting
- Drilling
- Marking
- Engraving
- Scribing
- Perforating
- Welding
- Kiss Cutting
KEY FEATURES

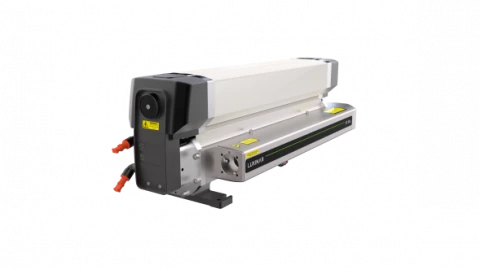

SR 08s – 80W sealed CO₂ laser source
The smallest of the SR series, the SR 08s offers power up to 80W, along with the following key features:
- IP66 rating
- Wavelengths 10.6µm, 9.3µm
- Integrated and field replaceable RF power supplies
- Compact, lightweight laser source
- Simple diagnostics
- Minimum shipment power 20% higher than rated power
Like all of the SR series lasers, the SR 08s is designed with an integrated RF power supply and is hermetically sealed, making it ideal for the harshest of industrial environments; it will withstand dust, heat and water spray. The simple control interface and compact mechanical design of the unit allow easy integration into laser-based processing machines used for cutting, marking, perforating and drilling, among others. Throughput, economy, flexibility and reliability are the main features associated with the SR series of CO2 laser sources.
