Description
The 1.0μm PM Cladding Power Stripper is an essential component in high-power fiber lasers and amplifiers where substantial optical powers need to be managed efficiently. Designed to handle high power, this power stripper ensures that optical powers are absorbed over a widespread region, and excess heat is safely dissipated.
It is crucial for applications where residual pump and signal energy, present in the outer cladding, must be removed to prevent damage to downstream components. This power stripper effectively strips off residual pump and signal while keeping the amplified signal unaffected, ensuring optimal performance in fiber laser systems.

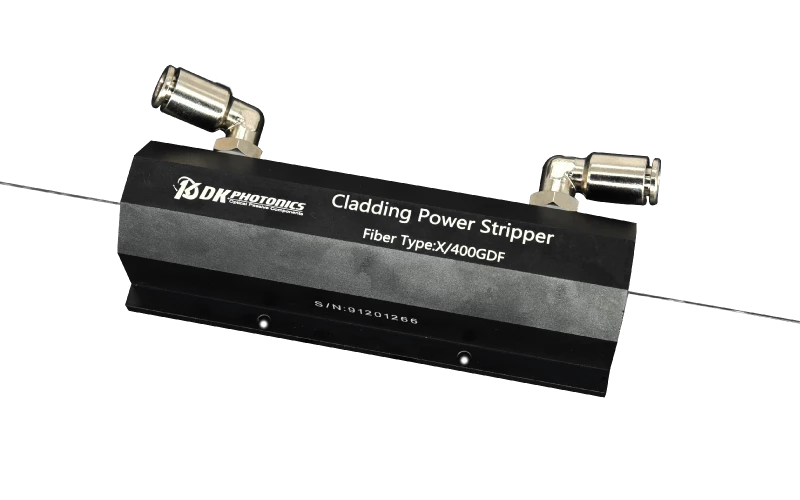

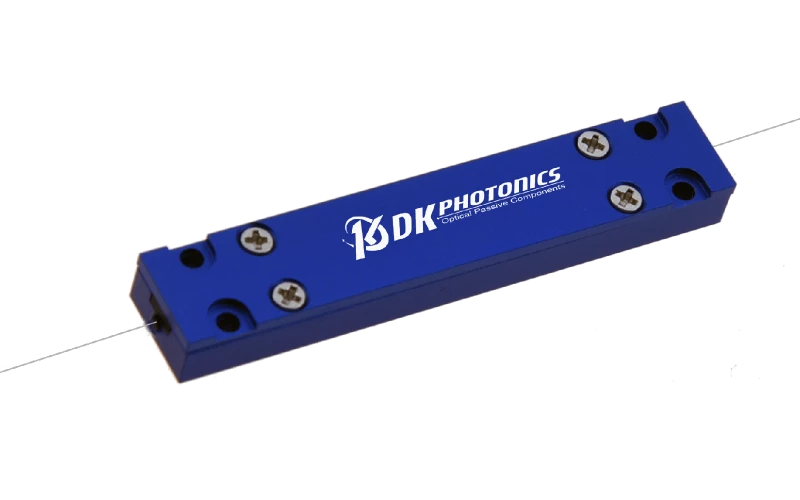

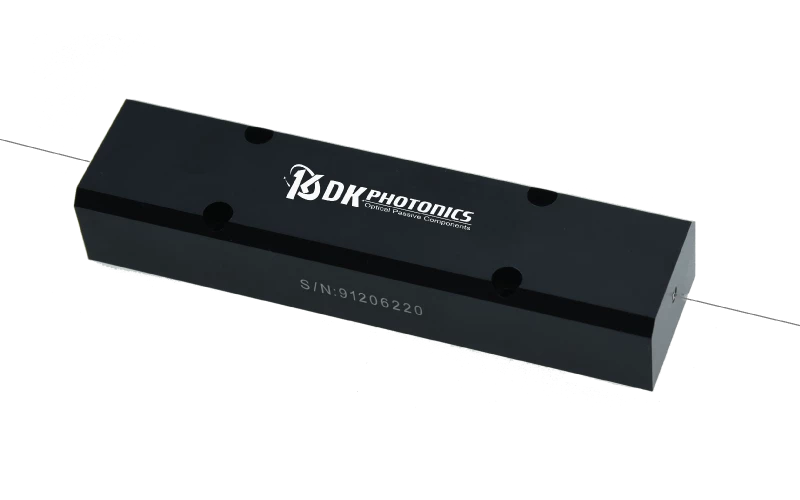

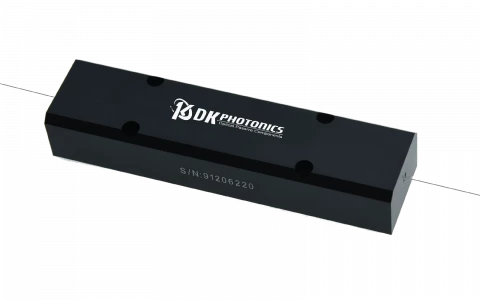

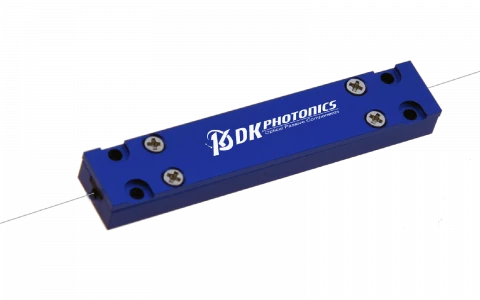

1.0μm PM Cladding Power Stripper
Specifications
| Center Signal Wavelength: | 1030, 1064, 1080, 1550 nm |
|---|---|
| Operating Wavelength-Pumps: | 800~1200 nm |
| Cladding Attenuation (min): | 17~20 dB |
| Cladding Power Handling: | 10~300 W |
| Type. Insertion Loss: | 0.05 dB |
| Max. Insertion Loss: | 0.20 dB |
| Min. Polarization Extinction Ratio: | 18 dB |
| Cladding Power Handling (Stripping Power): | 10-30 W |
| Fiber Type In/Out: | Double Clad fiber |
| Pigtail Length: | 0.8 m |
| Operation Temperature: | 0 to +50 ℃ |
| Storage Temperature Range: | -20 to +75 °C |
Download Data Sheet
Features
- Low Insertion Loss (0.05 dB at 25℃)
- High Power Handling (Up to 500W)
- High Power Absorption
- PM and Non-PM Versions Available
- Customizable Fiber Type and Wavelength
- High Reliability and Excellent Temperature Stability
- Water Cooling Option for Stripping Power ≥ 100W
Applications
- Fiber amplifier and laser systems
- Cladding-mode-free high power beam delivery
- ASE (Amplified Spontaneous Emission) stripping
- Industrial, Biomedical, Telecom, and Metrology Applications
- Life Science, Imaging, and Quantum Optics Research
Frequently Asked Questions
What is a Cladding Power Stripper?
Cladding Power Stripper is a device used in high-power fiber lasers and amplifiers to handle substantial optical powers and ensure that these powers are absorbed in a sufficiently widespread region, and that the generated heat can be removed safely, without damaging the mode stripper or any surrounding parts.
Can I get a custom Cladding Power Stripper?
Yes, if you do not see a standard CPS that meets your needs, the company welcomes the opportunity to review your desired specification and quote a custom CPS. Requests for custom fiber type, different wavelengths and handling power of operation or other specific needs will be readily addressed.
What are the applications of Cladding Power Stripper?
The applications of Cladding Power Stripper include fiber amplifier and laser systems, ASE stripping, cladding-mode-free high power beam delivery, industrial, biomedical, telecom, metrology, life science, imaging, and quantum optics.
What are the features of Cladding Power Stripper?
The features of Cladding Power Stripper include low insertion loss, high power handling, high power absorption, PM and Non-PM availability, customizable fiber, high reliability, and excellent temperature stability.
What is the maximum cladding power handling of Cladding Power Stripper?
The maximum cladding power handling (stripping power) of Cladding Power Stripper is up to 300W.
