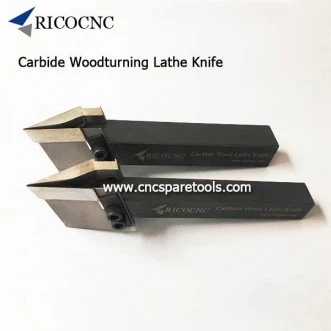

Carbide Wood Lathe Knifes CNC Lathe Cutters for Woodturning Lather Machine

Specifications

Size: 20*20*150mm / 25*25*150mm
Knife Blade: high quality solid carbide
Blade Length: 40mm
Cutting Angle: 17 degree
Blade Tip Radius: 0.75mm or 1mm or 1.5mm
Blade Thickness: 13mm
Blade Hardness: 91-91.5 HRC
Precision: Line error within 0.1mm
Knife Holder Size: 25*25*150mm, 20*20*150mm
Model: Carbide wood lathe knives
Document icon Download Data Sheet Download icon

Features


  • Eliminates Frequent Sharpening: This wood lathe knife significantly reduces the need for frequent sharpening, enhancing productivity and lowering production costs.

  • Compatibility: Designed for use with CNC wood turning lathe machines, including models like CNC Auto Motion, Cosen CNC, Intorex, Unique CNC, StyleCNC, and Laguna.

  • Replaceable Carbide Cutter: Features a replaceable carbide cutter woodturning blade that enhances fatigue resistance, safety, and efficiency.

  • Material Removal Efficiency: Effortlessly removes large amounts of material on any woodturning project without sharpening.

  • Knife Holder: Made of 40Cr Steel, available in sizes 20*20*150mm or 25*25*150mm.

  • High-Quality Blade: Solid carbide blade with a length of 40mm, cutting angle of 17 degrees, and thickness of 13mm.

  • Blade Tip Radius Options: Available in 0.75mm, 1mm, or 1.5mm.

  • Blade Hardness: Achieves a hardness of 91-91.5 HRC, offering superior wear resistance.

  • Super Wearproof: Carbide inserts offer wear resistance at least 20 times greater than high-speed steel.

  • High Precision: Ensures a line error within 0.1mm and cutter tip smoothness over 95% for a great surface finish.

  • Knife Head Options: Available in R0.75, R1.0, and R1.5.

  • Applicable Materials: Suitable for redwood, rosewood, hardwood, medium hardwood, plastic, acrylic, carbon fiber, resin, and more. Delivers excellent results even on softwood.

Applications


  • Hardwood Machining: Ideal for redwood, rosewood, and other dense materials

  • Softwood and Plastic Turning: Performs smoothly even on softer woods and acrylics

  • Composite Material Shaping: Effective on resin, carbon fiber, and medium-density substrates

  • Furniture Component Manufacturing: Ensures consistency and smooth finish

  • CNC Woodturning Automation: Perfect for high-volume, precision CNC wood lathes
