Description

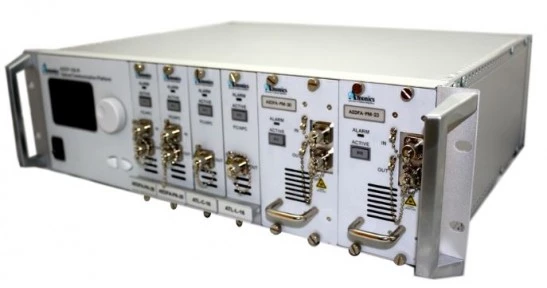

Introducing the Amonics Optical Communication Platform (AOCP-100), a state-of-the-art solution engineered to accommodate up to eight optical plug-in modules. This platform is a versatile and robust choice for professionals seeking to integrate a variety of optical components, such as tunable lasers, optical fiber amplifiers, and more. With a focus on flexibility and user convenience, the AOCP-100 is designed to meet the diverse needs of modern optical communication systems.
The AOCP-100 provides users with the ability to control and monitor each module independently, thanks to its intuitive front panel LCD display. Additionally, remote management is made simple via a USB computer interface, with future capabilities including TCP/IP Ethernet connectivity. This ensures that users have comprehensive control over their optical modules, enhancing both efficiency and productivity.
Housed in a standard 3U mainframe casing, measuring 485mm in width, 345mm in depth, and 132mm in height, the AOCP-100 is both compact and durable. Manufactured under a HKQAA ISO 9001 certified quality management system, this platform guarantees reliability and quality, adhering to the highest industry standards. Ideal for environments where space and performance are critical, the AOCP-100 offers a cost-effective and user-friendly solution for optical communication needs.
Optical Communication Platform
Specifications |
|
|---|---|
| Laser Output Power: | Max. +18dBm |
| Laser Output Power: | Min. +16dBm |
| Wavelength Tuning Range: | 1527.60 to 1565.50nm |
| Wavelength Tuning Resolution: | 0.01nm |
| Wavelength Tuning Accuracy: | ±0.02nm |
| Laser FWHM Linewidth: | Typ. 100kHz, Max. 200kHz |
| Operation Wavelength: | 1530 to 1563nm |
| Input / Output Isolation: | Min. 30dB |
| Polarization Dependent Gain: | Typ. 0.3dB, Max. 0.5dB |
| Polarization Mode Dispersion: | Max. 0.3ps |
Features
- Turnkey Device: Ready to use with minimal setup required.
- USB Computer Interface: Allows easy connection and control via USB.
- Supports Up to 8 Plug-in Modules: Accommodates various optical modules such as tunable lasers, optical fiber amplifiers, and more.
- User Friendly: Designed for ease of use with intuitive controls.
- Compact and Durable: Built to last with a space-efficient design.
- Remote Control Capability: Monitor and control modules through front panel LCD display and remotely via USB and TCP/IP Ethernet.
- Standard 3U Mainframe Casing: Dimensions of 485(W) x 345(D) x 132(H) mm, suitable for various setups.
- High Quality Manufacturing: Produced under a HKQAA ISO 9001 certified quality management system.
- Cost Effective and Space Efficient: Offers a high-performance solution that saves space and cost.
- Wide Wavelength Tuning Range: Covers 1527.60 to 1565.50 nm and 1568.85 to 1608.76 nm with high precision.
- Accurate Power and Wavelength Control: Features 0.01 nm tuning resolution and ±0.02 nm tuning accuracy.
- Excellent Signal Quality: Provides high SMSR and OSNR for optimal performance.
Applications
- Telecommunications: Integrate into telecommunications networks for signal amplification and wavelength management.
- Research and Development: Use in laboratories for testing and developing new optical communication technologies.
- Data Centers: Enhance data center operations by optimizing optical signal processing and management.
- Network Infrastructure: Implement in network infrastructure to improve bandwidth and signal quality.
- Optical Sensing: Apply in optical sensing applications for precise measurement and data acquisition.
- Broadcasting: Utilize in broadcasting systems to ensure high-quality signal transmission over long distances.
- Military and Aerospace: Deploy in military and aerospace applications for secure and robust communication systems.
Frequently Asked Questions
The Amonics Optical Communication Platform is a device that can house up to 8 optical plug-in modules, including tunable laser, optical fiber amplifier, optical power meter, variable optical attenuator, DFB laser, SLD, optical switch, and more.
Users can control and monitor each module individually through the front panel LCD display and remote control via USB. Computer interface via TCP/IP ethernet will be possible.
The Optical Communication Platform is available in standard 3U mainframe casing, 485(W) x 345(D) x 132(H) mm.
The product is manufactured under a HKQAA ISO 9001 certified quality management system. The ISO 9001:2008 certification applies to the Hong Kong production site only.
Yes, other output power models are available upon request. Please contact Amonics for more information on the specifications and product codes of plug-in modules.
