Description
Connet high quality cladding power stripper has unique optical properties. This device can absorb the light transmitted in the inner cladding of the double-clad fiber.
In double-clad fiber, all the light transmitted in the optical waveguide formed by the inner cladding with large numerical aperture (>/=0.46) and the fiber core with the small numerical aperture (up to 0.06) can be ‘absorbed’ by the cladding power stripper and meanwhile the signal light transmitted in the fiber core can be well maintained including the signal light power and the beam quality factor (M2).
The high quality cladding power stripper of Connet is the ideal device for the double-clad fiber laser/fiber amplifier to remove the residual pump light in the cladding, the ASE light leaking from the fiber core into the inner cladding and the higher-order mode signal light.
This document only shows the specifications of the standard cladding power strippers. Connet also can customize the products with different fiber types according to customers requirements. If you have specific requirements, please contact Connet.

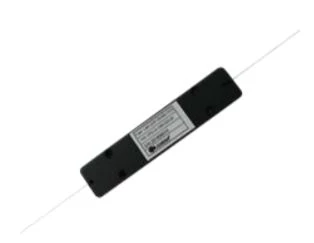

High Quality Cladding Power Stripper
Specifications
Operating Wavelength: | 1030-1080 nm |
---|---|
Input/output Fiber Type: | Nufern LMA-GDF-20/400-M |
Numerical Aperture (NA): | 0.065/0.46 |
Min. Stripping Rate: | >98% |
Max. Stripping Power: | >200W or >50W depending on the model |
Dimensions (CPS-20/400-065-HP-10/10): | 125(L) x 30(W) x 15(H) mm |
Dimensions (CPS-20/400-065-MP-10/10): | 100(L) x 20(W) x 10(H) mm |
Features
- Bear high power
- High power absorption
- Minimum signal power loss
- Meet RoHS standards
Applications
- High power fiber laser
- MOPA-structure high power fiber amplifier
- Multistage double-clad fiber amplifier
- Other scientific research
Frequently Asked Questions
Can Connet customize the cladding power stripper according to customer requirements?
Yes, Connet can customize the cladding power stripper with different fiber types according to customers' requirements.
What are the applications of a cladding power stripper?
A cladding power stripper can be used in high power fiber lasers, MOPA-structure high power fiber amplifiers, multistage double-clad fiber amplifiers, and other scientific research.
What are the features of Connet's high quality cladding power stripper?
Connet's high quality cladding power stripper can bear high power, has high power absorption, minimum signal power loss, and meets RoHS standards.
What is a cladding power stripper?
A cladding power stripper is a device that can absorb the light transmitted in the inner cladding of the double-clad fiber.
What is the purpose of a cladding power stripper?
The purpose of a cladding power stripper is to remove the residual pump light in the cladding, the ASE light leaking from the fiber core into the inner cladding and the higher-order mode signal light.
