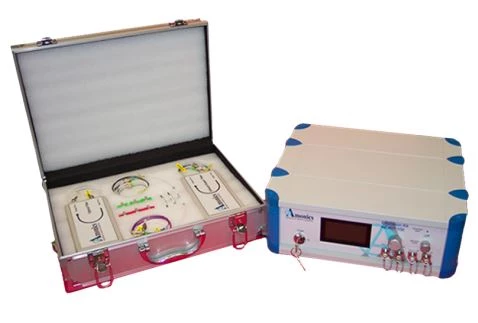

EDFA Education Kit with Performance Measurements and Optimization Tools

Specifications

Component #1: Benchtop with 980nm pump laser
Component #2: C-band DFB laser
Component #3: Handheld porwer mete
Component #4: Erbium-doped fiber module
Component #5: Optical isolators
Component #6: 980nm and 1550nm division multiplexer
Component #7: 1550nm optical filter
Document icon Download Data Sheet Download icon

Features


  • Comprehensive Learning Experience: The EDFA Education Kit provides an all-in-one solution for acquiring essential skills in optical communications.

  • Hands-on Practical Skills: Engage in building a fully functional practical EDFA system to enhance learning through experience.

  • Performance Measurements: Conduct optical measurements with precision and accuracy, enhancing understanding of optical systems.

  • Optimization Options: Explore various configurations to optimize system performance and gain insights into real-world applications.

  • Use of Advanced Components: Utilize high-quality components to ensure effective learning and experimentation.

  • Integration with Educational Materials: The kit is fully connected to educational resources, ensuring a comprehensive learning journey.

  • Independent Operation: Designed to work independently, providing flexibility in educational settings.

  • User Manual Included: Comes with a detailed manual to guide users through experiments and setups.

  • ISO Certified Quality: Manufactured under an HKQAA ISO 9001 certified quality management system, ensuring high standards.

Applications


  • University Teaching Labs: Ideal for training students in fiber optic amplifier construction and testing.

  • Research and Development Training: Suitable for practical skill development in photonics and optical communication labs.

  • EDFA Performance Analysis: Enables gain, noise figure, and fiber length optimization experiments.

  • Hands-On Fiber Optic Education: Provides direct experience in optical measurements and system integration.
