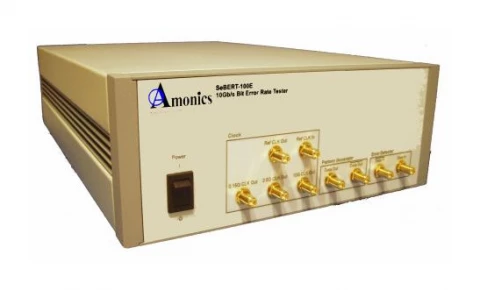

10Gbps Bit Error Rate Tester with XFP Module Slot

Name: 10Gbps Bit Error Rate Tester with XFP Module Slot
Brand: Amonics Limited
Availability: InStock

Description

Introducing the 10Gb Serial Bit Error Rate Tester (ABERT-100), a state-of-the-art solution for high-speed data transmission testing. This integrated Pseudo-random Bit Sequence (PRBS) generator and Bit Error Rate receiver is designed to meet the rigorous demands of modern optical component and fiber link testing. With its flexible module slot, the ABERT-100 supports both SFP+ and XFP transceivers, providing versatility and adaptability for various testing scenarios.

The ABERT-100 excels in delivering precise and reliable performance with its optical NRZ waveform output, covering bit rates from 9.95 to 11.21 Gbps. It offers a range of settable data patterns, including 27-1, 223-1, 231-1, and a fixed 64-bit user-defined pattern, ensuring comprehensive testing capabilities. The device is easily controlled via PC software, allowing users to set data patterns and view Bit Error Rate (BER) test results conveniently.

Designed under a HKQAA ISO 9001 certified quality management system, the ABERT-100 guarantees high standards of manufacturing quality. This certification is specific to the Hong Kong production site, underscoring the commitment to excellence in production. Available in multiple configurations, the ABERT-100 offers options with XFP, SFP, or no optical module slots, catering to diverse testing needs.

Specifications

Bit Rate:	9.95-11.32 Gb/s
Data Rate (DR):	9.95328-11.320 Gb/s
Output Signal Level:	300-500 mVpp
Pre-emphasis:	32 step
Data Patterns:	PRBS: 2^7-1, 2^23-1, 2^31-1, 64 user-defined bit
Data Format, Mark Density:	NRZ, 0.5
Input Signal Level:	40-700 mVpp
Internal Gain:	128 step
Equalization:	32 step
Detection Threshold:	Not Specified

Download Data Sheet

Features

Bit Rates: Supports bit rates from 9.95 to 11.32 Gb/s, making it versatile for various testing needs.

Data Patterns: Offers PRBS 27-1, 223-1, 231-1, and a 64-bit user-definable pattern for comprehensive testing.

Pre-emphasis Output: Features pre-emphasis output signal functionality to enhance signal integrity.

Module Compatibility: Includes an XFP module slot, with options for SFP+ or no optical module slot.

Computer Control: Easily controlled via USB connection, allowing seamless integration with PC software.

Cost-effective: Designed as a low-cost solution for TX/RX device testing and data transmission experiments.

Applications

Optical Components and Fiber Link Testing: Ensures high-speed performance validation for optical devices.

SONET OC192/SDH STM-64 Systems: Ideal for telecom and data center network equipment testing.

10 Gigabit Ethernet (10GbE): Suitable for Ethernet device and transceiver testing.

Low-Cost TX/RX Device Testing: Provides an efficient solution for transceiver and module verification.

Data Transmission Experiments: Supports R&D environments for signal integrity and BER analysis.

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Amonics Limited

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is ABERT-100?

ABERT-100 is an integrated Pseudo-random Bit Sequence (PRBS) generator and a Bit Error Rate receiver with a built-in module slot for either SFP+ or XFP transceivers.

What are the bit rates supported by ABERT-100?

ABERT-100 supports bit rates from 9.95-11.32Gb/s.

What are the data patterns supported by ABERT-100?

ABERT-100 supports PRBS 27-1, 223-1, 231-1, and 64 bit definable data patterns.

How is data pattern set in ABERT-100?

Data pattern is set by PC software.

What are the applications of ABERT-100?

ABERT-100 is used for testing optical components and fiber link, SONET OC192/SDH-, STM-64, 10Gigabit Ethernet(10GbE), low cost TX/RX device testing, and data transmission experiments.
