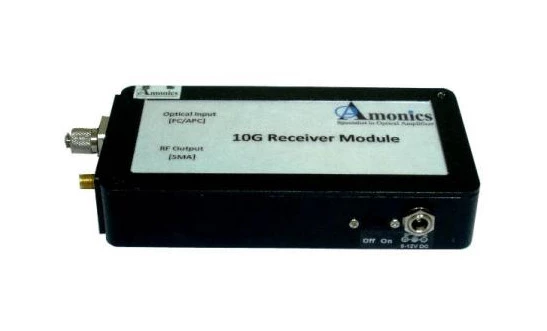

PR10G 10Gbit/s AC-Coupled Photo-Receiver Module

Specifications

Sensitivity (10^-10 BER): >-18dBm (-20dBm typ.)
Overload (10^-13 BER): >0dBm (+2dBm typ.)
Operation Wavelength Range: 1280nm-1580nm
Maximum AC Output Voltage Swing: 350mVp-p (typ.)
Low/High Frequency Cutoff: <30kHz / >8GHz
Total Input Noise (0.1 To 20GHz): <1200nA rms
RF Return Loss (0.1GHz To 5GHz): <10dB
Optical Connector: FC/APC
RF Connector: SMA female (K type)
Supply Voltage: 9V Battery or 12VDC
Operation Temperature: -5 to 70 °C
Storage Temperature: -10 to 75 °C
Dimension: 130mm (L) x 68mm (W) x 25mm (H)
Document icon Download Data Sheet Download icon

Features


  • AC Coupling: Ensures stable performance across varying frequencies.

  • High Transimpedance Coupling: Provides superior gain and signal quality.

  • Compact Size: Easy to integrate into various systems without occupying much space.

  • Wide Frequency Bandwidth: Supports a broad range of frequencies for versatile applications.

  • Broad Wavelength Bandwidth: Compatible with a wide range of optical wavelengths (1280nm-1580nm).

  • Good Performance Cost Ratio: Offers excellent performance at a competitive price.

  • Two Year Warranty: Ensures reliability and customer satisfaction.

  • High Sensitivity: Sensitivity at 10-10 BER is greater than -18dBm (typically -20dBm).

  • Overload Capacity: Overload at 10-13 BER is greater than 0dBm (typically +2dBm).

  • Maximum AC Output Voltage Swing: 350mVp-p (typical).

  • Low/High Frequency Cutoff: Less than 30kHz / Greater than 8GHz.

Applications


  • SONET/SDH Systems: Provides efficient high-speed signal reception for optical networks.

  • CATV and 10G Ethernet: Ideal for broadband and high-speed Ethernet infrastructures.

  • Transmitter/Receiver Components: Enhances performance in optical transmitter and receiver systems.

  • Testing and Measurement: Suitable for optical network system bit error rate testing and validation.
