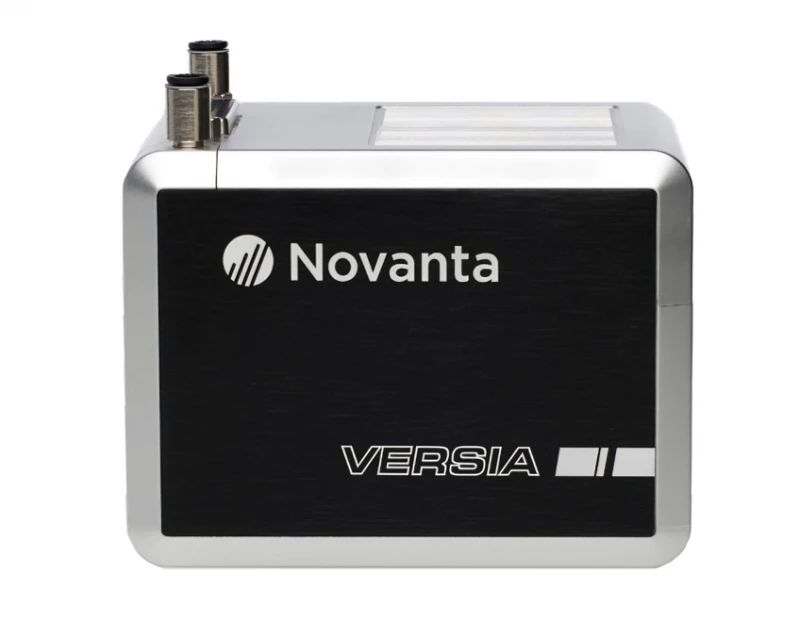

VERSIA 2-Axis Hybrid Scan Head

Specifications

Input Aperture: 14 mm
Wavelength: 351 nm (UV), 355 nm (UV), 527 nm (green), 532 nm (green), 1030 - 1080 nm, 9.4 - 10.6 μm, Other (see Data Sheet)
Max Scan Rate: Not Specified
Focal Length: Not Specified
Work Area X: Not Specified
Work Area Y: Not Specified
Z Tolerance: Not Specified
Max Laser Power: 200 W
Weight: 2.12 kg
Options: Water Cooling
Intended Application: Laser Cutting, Laser Micromachining
Scan Angle: ±21°
Repeatability: <2 mrad
Long Term Offset Drift: 25.4 mrad
Temperature Offset Drift: <10 µrad/°C
Command Resolution: 16-bit for XY2-100, 20-bit for NVL-100
IP Rating: IP54
Power Requirements: 48V, 5A RMS
Operating Temperature: 15 - 40 °C
Step Response Time 1% Of Full Scale1: 400 µs
Max Speed: >80 rad/s
Tracking Error: <230 µs
Dimensions (L X W X H): 99 x 99 x 132.20 mm
Document icon Download Data Sheet Download icon

Features


  • Advanced digital servo design enables multiple tunes optimized for specific applications

  • Dynamically matched mirror design enhances system performance

  • Bi-directional communication for position feedback monitoring

  • Integration of digital and analog electronics ensures low drift and high repeatability

  • Skywriting feature minimizes processing time loss due to acceleration and deceleration

  • Integrated monolithic water-cooling design for efficient heat dissipation

  • Compact industrial design reduces system footprint and facilitates easy integration

  • Supports industry-standard interface XY2-100 and Novanta’s NVL-100 for seamless connectivity

  • Two orientation options for DB25 interface provide integration flexibility

  • Tested with other Novanta products for complete laser marking sub-system solution

Applications


  • Marking and coding

  • Micromachining

  • OLED manufacturing

  • Non-contact marking of logos, alpha-numeric codes, barcodes, graphics, and expiration dates
