Description

The Firefly3D 3-Axis Scan Head represents a revolutionary leap forward in laser-based additive manufacturing (AM) technology. Developed by Novanta Corporation's Cambridge Technology division, this state-of-the-art scan head is meticulously engineered to meet the exacting demands of modern industrial AM processes, particularly within Laser Powder Based Fusion (LPBF) machines. With a relentless focus on precision, performance, and versatility, the Firefly3D scan head embodies innovation at its core.

Designed to simplify and enhance AM processes, the Firefly3D scan head seamlessly integrates into LPBF systems, offering a comprehensive solution that optimizes productivity, efficiency, and cost-effectiveness. Its compact yet robust design incorporates cutting-edge technology elements, allowing for seamless integration and operation within diverse manufacturing environments.

At the heart of the Firefly3D scan head is its high-performance digital scanning architecture, built on the foundation of Cambridge Technology's renowned LIGHTNING™ II technology. This advanced scanning system delivers unparalleled control and accuracy, empowering users to achieve precise and repeatable results across a wide range of AM applications.

The Firefly3D scan head features dedicated high-fidelity optical process monitoring ports, enabling real-time monitoring and control of key process parameters. This invaluable capability provides users with actionable insights, facilitating optimization and fine-tuning of AM processes for superior performance and quality.

Furthermore, the Firefly3D scan head is equipped with integrated sensor data collection and aggregation capabilities, allowing for comprehensive data analysis and process optimization. Its IP65 sealed optical chamber ensures robust protection against harsh operating environments, guaranteeing reliable performance even in demanding industrial settings.

With its flexible laser coupling solutions and compact form factor, the Firefly3D scan head offers unparalleled versatility and compatibility with a wide range of laser sources and AM systems. From rapid prototyping and product development to mass production of complex components, the Firefly3D scan head empowers manufacturers to push the boundaries of innovation and efficiency in additive manufacturing.

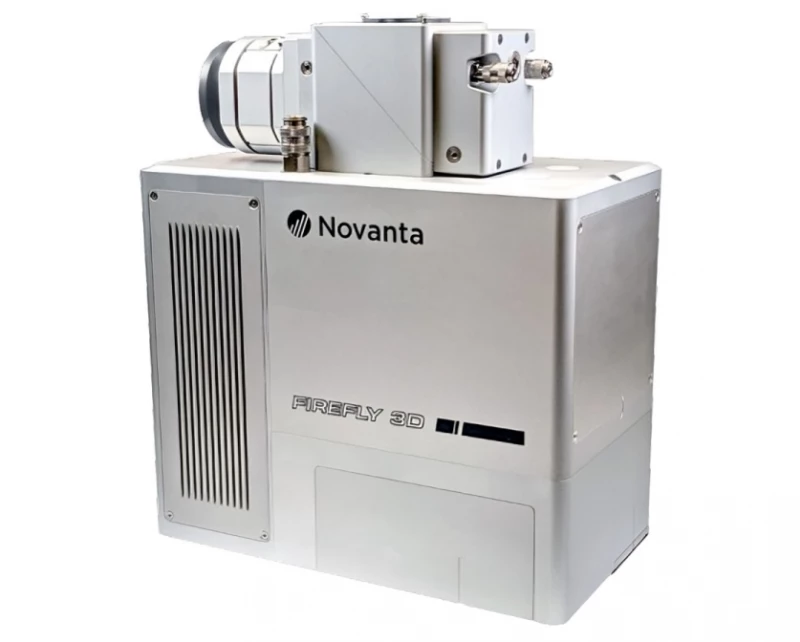

Firefly3D 3-Axis Scan Head

Specifications

Input Aperture: 20 mm
Wavelength: 1030 - 1080 nm, Other (see Data Sheet)
Max Scan Rate: Not Specified
Focal Length: Not Specified
Work Area X: 920 mm
Work Area Y: 920 mm
Z Tolerance: Not Specified
Max Laser Power: 1100 W
Weight: 12 kg
Options: Water Cooling
Intended Application: Laser Cutting, Laser Micromachining, 3D Printing
Max Angular Velocity: 50 rad/s
Integrated Pointer Laser Wavelength: 633 nm
Laser Power Monitoring: Power Monitoring Port | Optional: Power Sensor
Protocols: XY2-100 | XY2-100 (enhanced) | GS
Process Monitoring Sensor Interface: High Speed Serial Output | Analog Inputs
Analog Inputs: 2 Analog Input Channels (0-10Vdc)
Diagnostics Port: USB or bridged access via SMC to allow access to servo driver function and status reporting
Cooling Water Inlet Temperature: 18-20 °C
Inlet Pressure: 3-5 bar
Humidity (non-condensing): max. 80 %RH
Scanner Enclosure IP Rating: IP65
Dimensions (L X W X H): 255 x 140 x 290 mm
Electrical Supply: 48 Vdc +/- 2 Vdc

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-performance digital scanning architecture based on LIGHTNING™ II technology
  • Dedicated high-fidelity optical process monitoring ports
  • Integrated sensor data collection and aggregation capabilities
  • IP65 sealed optical chamber for robust protection in harsh environments
  • Compact form factor for seamless integration into AM systems
  • Flexible laser coupling solutions for compatibility with various laser sources

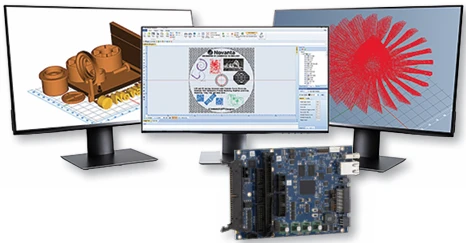

  • Process control toolkits for real-time optimization and fine-tuning

Applications

  • Laser Powder Based Fusion (LPBF) machines
  • Additive manufacturing processes in industries such as aviation, automotive, and precision engineering

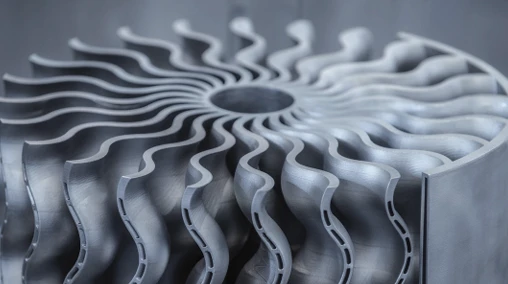

  • Mass production of complex geometries and customized components
  • High-precision manufacturing of electronic components and medical devices
  • Rapid prototyping and product development in research and development facilities

Frequently Asked Questions

What is the Firefly3D 3-Axis Scan Head designed for?
The Firefly3D 3-Axis Scan Head represents a revolutionary leap forward in laser-based additive manufacturing (AM) technology, meticulously engineered to meet the exacting demands of modern industrial AM processes, particularly within Laser Powder Based Fusion (LPBF) machines.
How does the Firefly3D enhance additive manufacturing processes?
Designed to simplify and enhance AM processes, the Firefly3D seamlessly integrates into LPBF systems, offering a comprehensive solution that optimizes productivity, efficiency, and cost-effectiveness.
What technology forms the foundation of the Firefly3D scan head?
At the heart of the Firefly3D is its high-performance digital scanning architecture, built on the foundation of Cambridge Technology's renowned LIGHTNING™ II technology, providing unparalleled control and accuracy for precise and repeatable results across various AM applications.
Does the Firefly3D offer real-time monitoring capabilities?
Yes, the Firefly3D features dedicated high-fidelity optical process monitoring ports, enabling real-time monitoring and control of key process parameters, providing users with actionable insights to optimize AM processes for superior performance and quality.
How does the Firefly3D ensure reliability in demanding industrial settings?
Equipped with an IP65 sealed optical chamber, the Firefly3D ensures robust protection against harsh operating environments, guaranteeing reliable performance even in demanding industrial settings, while integrated sensor data collection and aggregation capabilities allow for comprehensive data analysis and process optimization.
